SGS SGS 51820

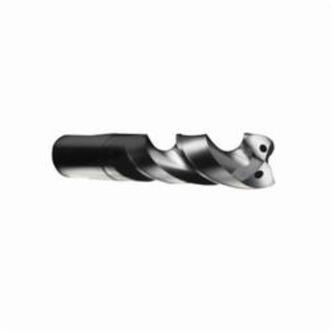

SGS 51820 Ice-Carb 140 Internal Coolant High Performance Drill, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 142 mm OAL, Micro Grain Solid Carbide, AlTiN Coated
Invoice description:
Drill 23/64", Carbide Coolant Through
UPC: 691781518206
UNSPSC:
23241605
Manufacturer PN: 51820
$325.66 EA
Factory OrderEstimated to ship in 7 days
SGS High Performance Drill, Internal Coolant, Series: Ice-Carb 140, 23/64 in Drill Size - Fraction, 0.3594 in Drill Size - Decimal Inch, 142 mm Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 95 mm Flute Length, 10 mm Shank, Common Normal Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting, Micro Grain Solid Carbide Cutting Edge, Micro Grain Solid Carbide, AlTiN Coated, Applicable Materials: Cast Iron, Steel, Stainless Steel and Titanium
Features
- Coolant through design
- High penetration 140 deg point geometry
- Engineered cutting edges
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Applicable MaterialsCast Iron, Steel, Stainless Steel and Titanium
Cutting Depth8XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicro Grain Solid Carbide
Drill Size - Decimal Inch0.3594 in
Drill Size - Fraction23/64 in
FinishAlTiN Coated
Flute Length95 mm
Flute TypeSpiral
MaterialMicro Grain Solid Carbide
Number of Flutes2
Overall Length142 mm
Point Angle140 deg
Point TypeSelf-Centering
SeriesIce-Carb 140
Shank Size10 mm
Shank TypeCommon Normal
TypeInternal Coolant
Additional Information
Standards/ApprovalISO 9001
Country of OriginUS
