GARR GARR 49100

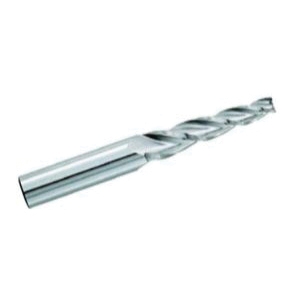

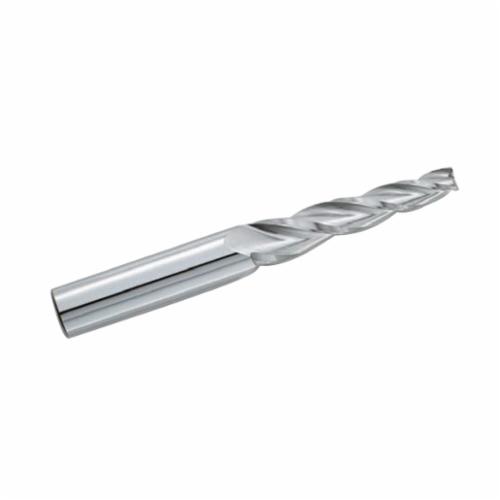

GARR 49100 273M Center Cutting Standard Length Tapered End Mill, 0.156 in Dia Cutter, 1-3/4 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 3-1/2 in OAL, Uncoated

Invoice description: Tem 0.156x1-3/4locx 3/8x 3-1/2 3fl N/c

UNSPSC: 23242511
Manufacturer PN: 49100
$62.18 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Tapered End Mill, Center Cutting Standard Length, Series: 273M, 0.156 in Cutter Dia, 3-1/2 in Overall Length, 1-3/4 in Length of Cut, 3 Flutes, Spiral Flute, 3/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, 1-3/4 in Shank Length, Solid Submicron Carbide, Uncoated

  • Features

  • Excellent for holding draft angles in die and mold applications
  • 3 deg taper angle

Specifications

ApplicationFor holding draft angles in mold and die applications
Cutter Diameter0.156 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1-3/4 in
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length3-1/2 in
Series273M
Shank Diameter3/8 in
Shank Length1-3/4 in
TypeCenter Cutting Standard Length

Additional Information

Country of OriginUS
