Sandvik Coromant SANC 5726546

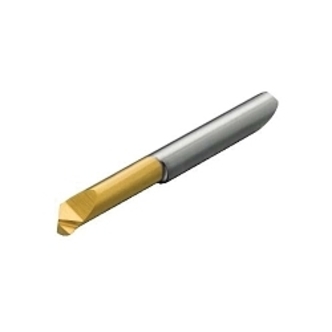

Sandvik Coromant 5726546 CoroTurn XS Grooving Tool, 0.057 in W Groove, 0.126 in Dia Min Hole, 0.472 in Max Hole Depth, Right Hand Cutting, Material Grade: M, N, O, P, S
Invoice description:
Cxs-04t090-15-3212r
Factory Order
Sandvik Coromant Grooving Tool, Series: CoroTurn XS, 0.057 in Groove Width, 0.126 in Minimum Hole Dia, Right Hand Cutting, 1.2878 in Overall Length, 0.472 in Maximum Hole Depth, 0.591 in Projection, 0.157 in Shank Dia, Solid Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, N, O, P, S
Features
- Optimized for machining of small high quality features
- High precision and repeatability
- Reliable and easy-to-use clamping system
- Locking precision - solid carbide boring bar fits precisely into the adaptor with a locating pin, rigid clamping with increased stability with collet clamped adaptors
Specifications
ApplicationFinishing, Internal Turning, Profiling, Face Grooving and Threading in All Materials
Cutting DirectionRight Hand
FinishPVD-TiAlN+TiN Coated
Groove Width0.057 in
MaterialSolid Carbide
Material GradeM, N, O, P, S
Maximum Hole Depth0.472 in
Minimum Hole Diameter0.126 in
Overall Length1.2878 in
Projection0.591 in
SeriesCoroTurn XS
Shank Diameter0.157 in
Additional Information
Country of OriginGB
