Harvey Tool HARV 29180XL

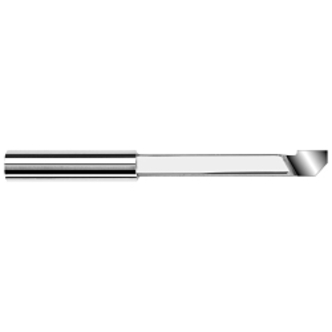

Harvey Tool 29180XL Boring Bar, 0.18 in Dia Min Bore, 2 in Max Bore Depth, 3 in OAL, Solid Carbide
Invoice description:
Boring Bar .18x2 Carb
Manufacturer PN: 29180XL
$101.32 EACH
Factory OrderEstimated to ship in 7 days
Harvey Tool, 29180XL, Boring Bar, 0.18 in Minimum Bore, 2 in Maximum Bore Depth, 3 in Overall Length, 3/16 in Shank Diameter, Cylindrical Shank, Right Hand Cutting Direction, Solid Carbide, Uncoated
Features
- Helical back rake flute improves accuracy and chip flow
- Square neck improves rigidity and has less deflection
- Tip is ground to sharp corner
- 70% stronger than round neck design
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Profile Bore
Specifications
Cutting DirectionRight Hand
FinishUncoated
MaterialSolid Carbide
Maximum Bore Depth2 in
Minimum Bore Diameter0.18 in
Overall Length3 in
Shank Diameter3/16 in
Shank TypeCylindrical
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
