Chicago-Latrobe PRO 50905

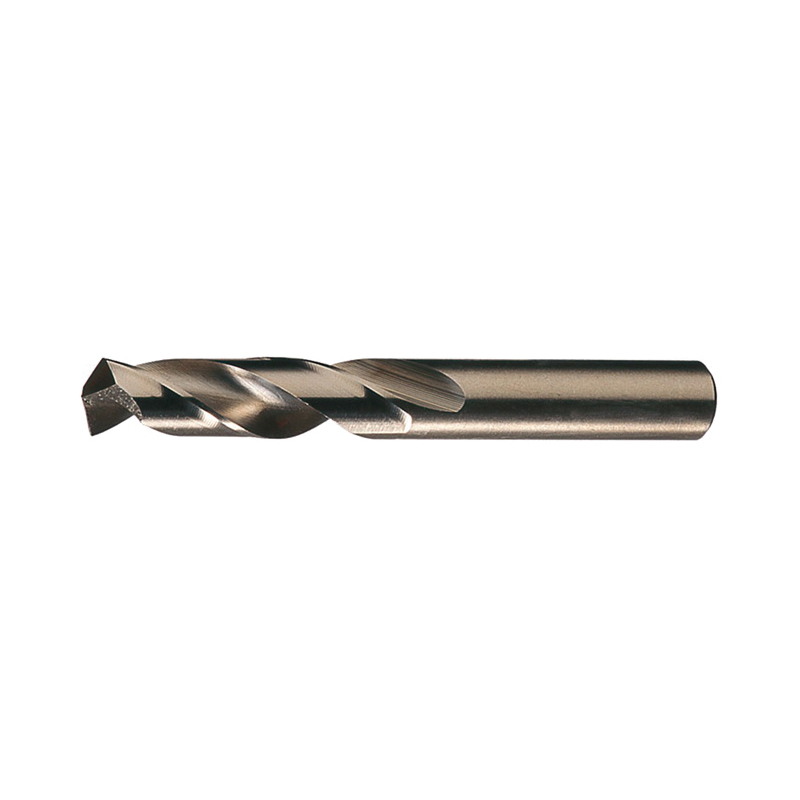

Chicago-Latrobe 50905 559 Heavy Duty Screw Machine Drill, #50 Drill - Wire, 0.07 in Drill - Decimal Inch, M42 HSS-Co 8, Straw
Invoice description:
#50 #559 Cobalt Stubby D Rill, 50905
In stock
(20)
Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 559, Imperial, #50 Drill - Wire, 0.07 in Drill - Decimal Inch, 1-11/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 11/16 in Flute Length, 0.07 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Straw, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
Features
- Heavy duty geometry for drilling tougher materials by hand or machine
- Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
- P3 split point is self-centering for reduced thrust and easier penetration
- Straw finish allows for easy identification of cobalt tools
Specifications
Applicable MaterialsAlloy Steel, Carbon Steel, Cast Iron and Tool Steel
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.07 in
Drill Size - Wire#50
FinishStraw

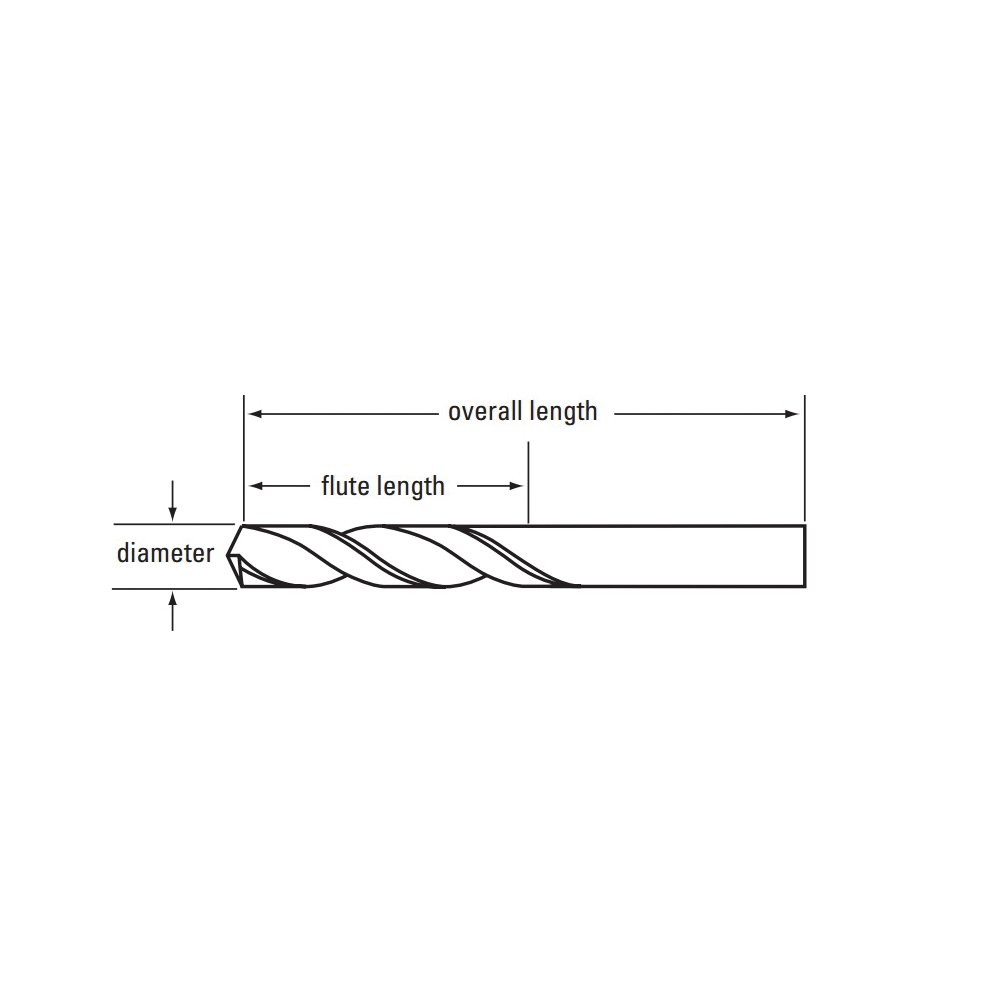

Flute Length11/16 in
Flute TypeRight Spiral
MaterialM42 HSS-Co 8
Number of Flutes2
Overall Length1-11/16 in
Point Angle135 deg
Point TypeSplit
Series559
Shank Size0.07 in Dia x 1 in L
Shank TypeStraight
TypeHeavy Duty
Additional Information
Standards/ApprovalDIN 1897
Country of OriginUS
