Chicago-Latrobe PRO 50803

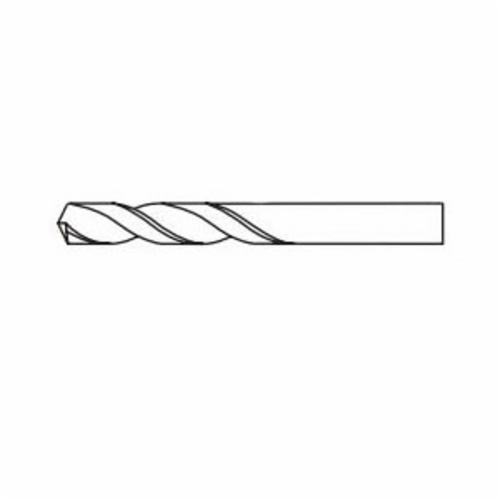

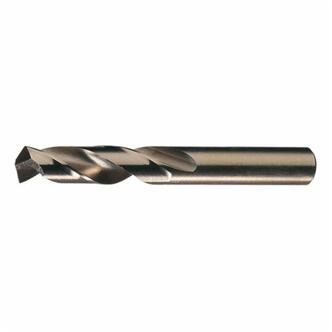

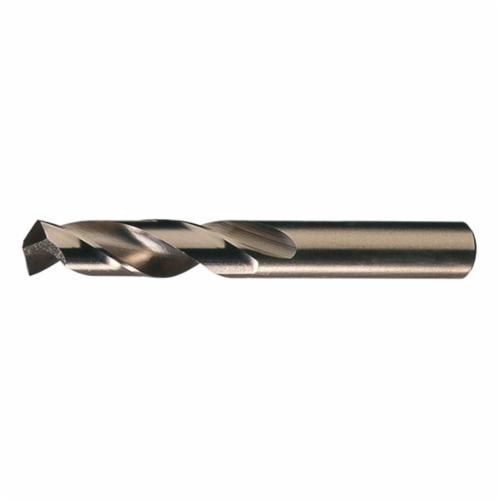

Chicago-Latrobe 50803 559 Heavy Duty Screw Machine Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, M42 HSS-Co 8, Straw
UPC: 662355508039
UNSPSC:
23241606
Manufacturer PN: 50803
$2.00 EA
Factory OrderEstimated to ship in 7 days
Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 559, Imperial, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 1-3/4 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 3/4 in Flute Length, 3/32 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Straw, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel
Features
- Heavy duty geometry for drilling tougher materials by hand or machine
- Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
- P3 split point is self-centering for reduced thrust and easier penetration
- Straw finish allows for easy identification of cobalt tools
Specifications
ApplicationFor drilling tougher materials by hand or machine
Applicable MaterialsAlloy Steel, Carbon Steel, Cast Iron and Tool Steel
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0938 in
Drill Size - Fraction3/32 in
FinishStraw
Flute Length3/4 in
Flute TypeRight Spiral
MaterialM42 HSS-Co 8
Number of Flutes2
Overall Length1-3/4 in
Point Angle135 deg
Point TypeSplit
Series559
Shank Size3/32 in Dia x 1 in L
Shank TypeStraight
TypeHeavy Duty
