Midland Industries MIDM 690808S

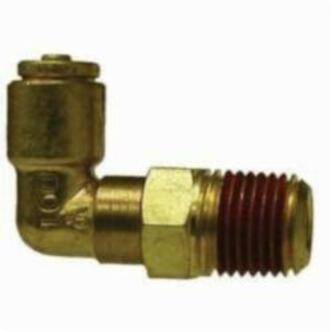

Midland Industries 690808S 90 deg 90 deg Tube To Pipe Swivel Elbow, 1/2 in Nominal, Push-In x MNPTF End Style, CA377 Brass
Invoice description:
Dot Push In Elbow Swivel Air Brake
Factory Order
Midland Industries Tube To Pipe Swivel Elbow, 90 deg, 90 deg Elbow Fitting/Connector, 1/2 in Nominal, Push-In x MNPTF End Style, 150 psi Pressure, -40 to 200 deg F, CA377 Brass, Forged Method of Manufacture
Features
- Fast assembly - No tools required, simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings, no loose parts to handle
- Fast disconnect - Hold the collet collar with two fingers and pull out tube
- Reusable - Can be connected and disconnected several times
- Reliable sealing - using recommended tubing, full sealing is guaranteed
- Versatility - Buna-N Oring standard, viton and others avail, secure tube retention, pulling on tubing only serves to tighten the connection
- Pre-Applied Teflon based pipe sealant on all male pipe threads, saving customer additional labor
- Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
- DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
- The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
- Hex Size: 0.87 in
Specifications
End StylePush-In x MNPTF
Fitting/Connector Type90 deg Elbow
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/2 in
Pressure Rating150 psi
Temperature Rating-40 to 200 deg F
Type90 deg
Additional Information
Country of OriginTW
