Midland Industries MIDM 620400

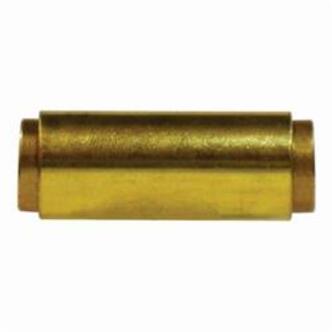

Midland Industries 620400 Tube Union, 1/4 in, Push-In, Brass

Invoice description: 1/4 Dot Push In Air Brak E Union

UNSPSC: 40183103

Manufacturer PN: 620400

^$9.50 EA

Factory Order
Estimated to ship in 7 days

Midland Industries Tube Union, Union Fitting/Connector, 1/4 in Nominal, Push-In End Style, 1.4 in Length, 150 psi Pressure, -40 to 200 deg F, Brass

Features
Fast assembly - No tools required, simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings, no loose parts to handle
Fast disconnect - Hold the collet collar with two fingers and pull out tube
Reusable - Can be connected and disconnected several times
Reliable sealing - using recommended tubing, full sealing is guaranteed
Versatility - Buna-N Oring standard, viton and others avail, secure tube retention, pulling on tubing only serves to tighten the connection
Pre-Applied Teflon based pipe sealant on all male pipe threads, saving customer additional labor
Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
0.51 in Height
