Midland Industries MIDM 10283

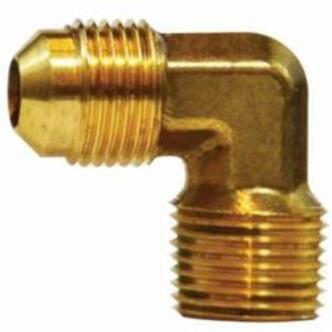

Midland Industries 10283 90 deg Elbow, 1/8 in Nominal, SAE Male Flare x Male NPTF End Style, CA377 Brass
Invoice description:
1/8 X 1/8 M Flare X Mip El
Factory Order
Midland Industries Elbow, 90 deg Elbow Fitting/Connector, 1/8 in Nominal, SAE Male Flare x Male NPTF End Style, 0.03 in Thickness, 2800 psi Pressure, -65 to 250 deg F, CA377 Brass, 0.63 in L x 0.73 in W Dimensions, Forged Method of Manufacture
Features
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
- 0.37 in body
Specifications
ApplicationLP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Dimensions0.63 in L x 0.73 in W
End StyleSAE Male Flare x Male NPTF
Fitting/Connector Type90 deg Elbow
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/8 in
Pressure Rating2800 psi
Temperature Rating-65 to 250 deg F
Thickness0.03 in
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 010202
Country of OriginUS
