KYOCERA KYO 8844572
KYOCERA TLC10539 GD Series Grooving Insert, ANSI Code: GDM3020N020GM PR1535, GDM Insert, 3020 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: PR1535, PVD-MEGACOAT NANO, Material Grade: M, S
Invoice description:
Ins Gdm3020n-020gm Pr1535 Ins Gdm3020n-020gm Pr1535
Factory Order
KYOCERA Grooving Insert, Series: GD Series, GDM Insert, 3020 Insert, 3 mm Cutting Width, 4.3 mm Maximum Depth of Cut, GM Chipbreaker, 0.0079 in Corner Radius, 0.1299 in Thickness, 20 mm Length, Manufacturers Grade: PR1535, ANSI Code: GDM3020N020GM PR1535, Neutral Cutting Direction, Carbide, PVD-MEGACOAT NANO, Material Grade: M, S
Features
- For light interruption and medium-roughing in (S) heat-resistant alloy and (M) stainless steel
- Insert for external grooving, traversing
- General purpose/2-edge
- 2 cutting edges
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Specifications
ApplicationPVD for Titanium Alloy and Precipitation Hardened Stainless Steel
ANSI CodeGDM3020N020GM PR1535

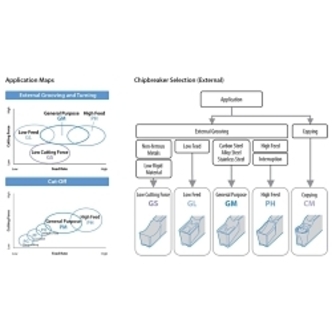

ChipbreakerGM
Corner Radius0.0079 in
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-MEGACOAT NANO
Insert Size3020
Insert StyleGDM
Length20 mm
Manufacturers GradePR1535
MaterialCarbide
Material GradeM, S
Maximum Depth of Cut4.3 mm
SeriesGD Series
Thickness0.1299 in
Additional Information
Country of OriginJP
Catalog
