KEO KEO 12652

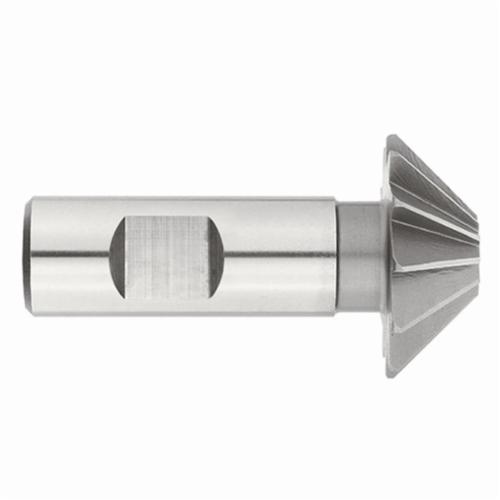

KEO 12652 CH126 Chamfered Straight Teeth Single Angle Cutter, 60 deg, 3/4 in Dia Cutter, HSS
Invoice description:
Ch24-60 S Angle Chamfer Cutter, 12652
UPC: 698036126520
UNSPSC:
23241622
Manufacturer PN: 12652
$123.20 EA
Factory OrderEstimated to ship in 14 days
KEO Single Angle Cutter, Chamfered Straight Teeth, Series: CH126, 3/4 in Diameter Cutter, 5/16 in Cutting Width, 8 Teeth, 60 deg Angle, 3/8 in Shank Diameter, 2-1/8 in Overall Length, Right Hand Cutting Direction, HSS, Uncoated
Features
- High speed steel provides good wear resistance
- Commonly used for general purpose applications on both ferrous and nonferrous materials
- Weldon flats flute shape
- 58 - 60 RC hardness
- +0.015 in cutting width tolerance
- +/-0.06 in overall length tolerance
- +/- 10 deg cutting angle toleranc
Specifications
ApplicationFor all dovetail work, production and toolroom work
Angle60 deg
Cutter Diameter3/4 in
Cutting DirectionRight Hand
Cutting Width5/16 in
FinishUncoated
MaterialHSS
Number of Teeth8
Overall Length2-1/8 in
SeriesCH126
Shank Diameter3/8 in
TypeChamfered Straight Teeth
Additional Information
Country of OriginUS
