Harvey Tool HARV 875632-C8

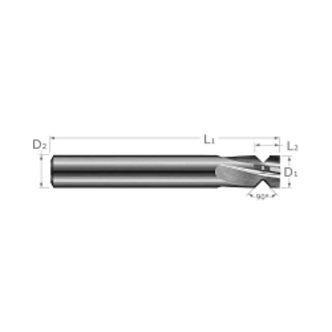

Harvey Tool, 875632-C8, Picatinny Form Cutter, 1/2 in Diameter Cutter, 90 deg Angle, 1/2 in Shank Diameter, Cylindrical Shank, 3 in Overall Length, Right Hand Cutting Direction, Solid Carbide, TiB2

• Features

• Mill the entire Picatinny Rail in a single pass without tool changes
• Cutting on the entirety of concave form and OD flat at end
• .005 in max radii for all internal corners
• Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Wood, Composites
• Length of Cut 0.3770 in
• Minor Diameter 0.2820 in
• Min Opening Width 0.0210 in
• End Length 0.1600 in
• Flutes 4
• Profile Rail Form
