Kennametal KENN 4176041

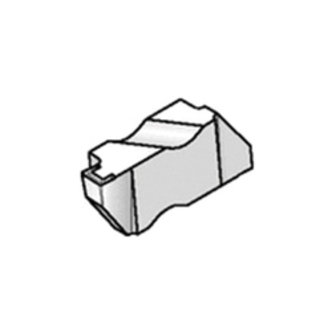

Kennametal 4176041 Top Notch Grooving Insert, ANSI Code: NG3062RK KCU10, NG Insert, 3062 Insert, Right Hand Cutting, 0.094 in H x 0.062 in W Cutting, Manufacturers Grade: KCU10, PVD-AlTiN Coated
Invoice description:
Insert Ng3062rk Kcu10
UNSPSC:
23242107
Manufacturer PN: 4176041
Factory OrderEstimated to ship in 14 days
--Price Unavailable--
Kennametal Grooving Insert, Series: Top Notch, NG Insert, 3062 Insert, 0.062 in Cutting Width, 0.04 in Maximum Depth of Cut, 3 deg Lead Angle, 0.094 in Cutting Height, K Chipbreaker, 0.0075 in Corner Radius, 10 deg Positive Rake, 0.344 in Thickness, 0.195 in Width, Manufacturers Grade: KCU10, ANSI Code: NG3062RK KCU10, ISO Code: NG3062RK KCU10, Right Hand Cutting, Carbide, PVD-AlTiN Coated
Specifications
ApplicationFor chip control geometry, general purpose grooving, O-ring grooving, circlip grooving and light turning
ANSI CodeNG3062RK KCU10
ChipbreakerK
Corner Radius0.0075 in
Cutting DirectionRight Hand
Cutting Height0.094 in
Cutting Width0.062 in
FinishPVD-AlTiN Coated
Insert Size3062
Insert StyleNG
ISO CodeNG3062RK KCU10
Lead Angle3 deg
Manufacturers GradeKCU10
MaterialCarbide
Maximum Depth of Cut0.04 in
Rake10 deg Positive
SeriesTop Notch
Thickness0.344 in
Width0.195 in
Additional Information
Country of OriginUS
