Kennametal KENN 1775035

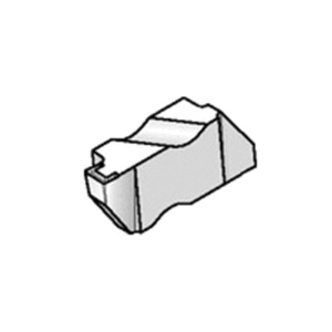

Kennametal 1775035 Top Notch Grooving Insert, ANSI Code: NG3125LK KC5025, NG Insert, 3125 Insert, Left Hand Cutting, 0.15 in H x 1/8 in W Cutting, Manufacturers Grade: KC5025, PVD-AlTiN Coated, Material Grade: C2/C6
Invoice description:
Ng3125lk Kc5025 Top Notch
Pack Size: 5
UNSPSC:
23242107
Manufacturer PN: 1775035
$21.20 EA
Factory OrderEstimated to ship in 14 days
Kennametal Grooving Insert, Series: Top Notch, NG Insert, 3125 Insert, 1/8 in Cutting Width, 0.04 in Maximum Depth of Cut, 3 deg Lead Angle, 0.15 in Cutting Height, K Chipbreaker, 0.0075 in Corner Radius, 10 deg Positive Rake, 0.344 in Thickness, 0.195 in Width, Manufacturers Grade: KC5025, ANSI Code: NG3125LK KC5025, ISO Code: NG3125LK KC5025, Left Hand Cutting, Carbide, PVD-AlTiN Coated, Material Grade: C2/C6
Specifications
ApplicationFor chip control geometry, general purpose grooving, O-ring grooving, circlip grooving and light turning
ANSI CodeNG3125LK KC5025
ChipbreakerK
Corner Radius0.0075 in
Cutting DirectionLeft Hand
Cutting Height0.15 in
Cutting Width1/8 in
FinishPVD-AlTiN Coated
Insert Size3125
Insert StyleNG
ISO CodeNG3125LK KC5025
Lead Angle3 deg
Manufacturers GradeKC5025
MaterialCarbide
Material GradeC2/C6
Maximum Depth of Cut0.04 in
Rake10 deg Positive
SeriesTop Notch
Thickness0.344 in
Width0.195 in
