Kennametal KENN 4149161

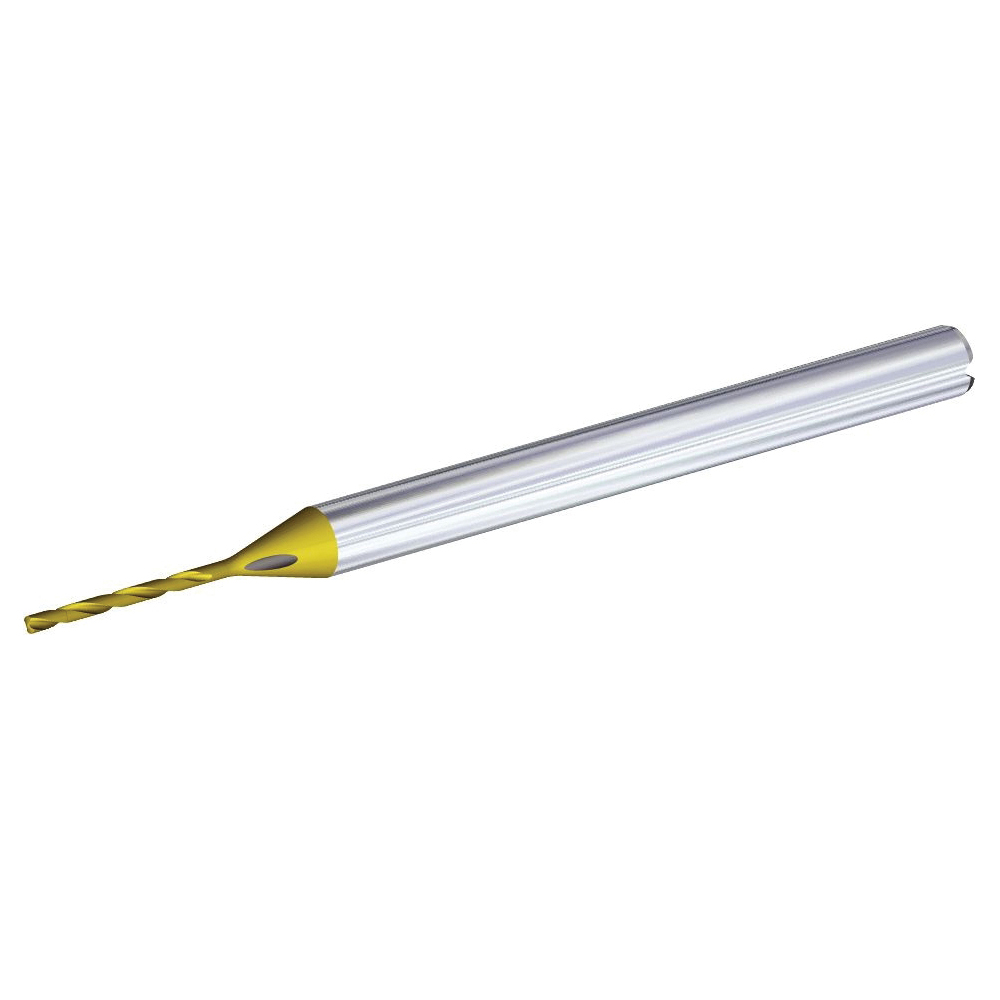

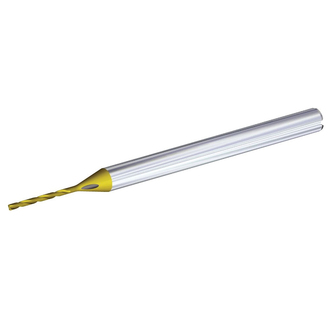

Kennametal 4149161 GOdrill B052A General Purpose Long Length Micro Drill With Through Coolant, 2.7 mm Drill - Metric, 0.1063 in Drill - Decimal Inch, 4 mm Dia x 28 mm L Shank, 2 Flutes
Factory Order
Kennametal Micro Drill, General Purpose Long Length, Series: GOdrill B052A, 2.7 mm Drill Size - Metric, 0.1063 in Drill Size - Decimal Inch, 58 mm Overall Length, 5xD Cutting Depth, 2 Flutes, Regular Spiral Flute, 22 mm Flute Length, 4 mm Dia x 28 mm L Shank, Cylindrical Shank, 140 deg Point, Standard Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, PVD-TiAlN Coated, Applicable Materials: Cast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Features
- Marginless design for reduced friction and heat thus longer tool life
- Optimized gashing design for micro drilling ensures free flow of chips in the center of the drill
- Uninterrupted straight cutting lip allows no starting point for wear and enables even distribution of cutting forces for longer tool life in all materials and less chipping on cutting edge
- KC7325 grade contains a double coating for broad band applications and a TiN top layer serves as a wear indicator for easier monitoring of small drills, which can be difficult to see
Specifications
ApplicationFor wide range of materials applications
Applicable MaterialsCast Iron, High Temperature Alloys, Non-Ferrous Metals, Steel and Stainless Steel
Cutting Depth5xD
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Size - Decimal Inch0.1063 in
Drill Size - Metric2.7 mm
FinishPVD-TiAlN Coated
Flute Length22 mm
Flute TypeRegular Spiral
MaterialSolid Carbide
Number of Flutes2
Overall Length58 mm
Point Angle140 deg
Point TypeStandard
SeriesGOdrill B052A
Shank Size4 mm Dia x 28 mm L
Shank TypeCylindrical
TypeGeneral Purpose Long Length
