Iscar ISCAR 6309494

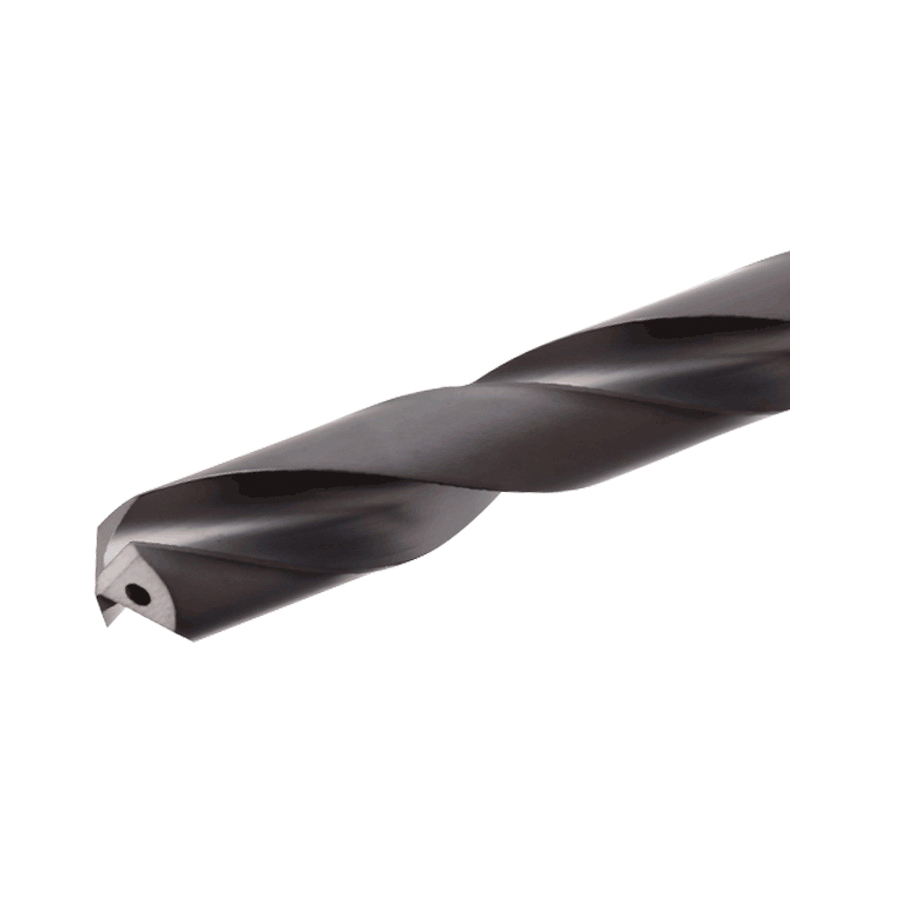

Iscar 6309494 SOLIDDRILL Jobber Length Drill Bit, 0.136 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, TiAlN Coated

Invoice description: Scd 0136-106-0187 Acp5n 908 Solid Carbide #29 Dr

UNSPSC: 23241634
Manufacturer PN: 6309494
$178.02 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Jobber Length Drill Bit, Series: SOLIDDRILL, Imperial, 0.136 in Drill - Decimal Inch, 2.6 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 1.06 in Flute Length, 0.187 in Shank, Cylindrical Shank, 140 deg Point, Standard Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Yes Through Coolant, Submicron Grain Solid Carbide, TiAlN Coated

Specifications

ApplicationHole Making
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.136 in
FinishTiAlN Coated
Flute Length1.06 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length2.6 in
Point Angle140 deg
Point TypeStandard
SeriesSOLIDDRILL
Shank Size0.187 in
Shank TypeCylindrical
Through Coolant (Yes/No)Yes

Additional Information

Standards/ApprovalISO 13399|DIN 6537
