Iscar ISCAR 6154661

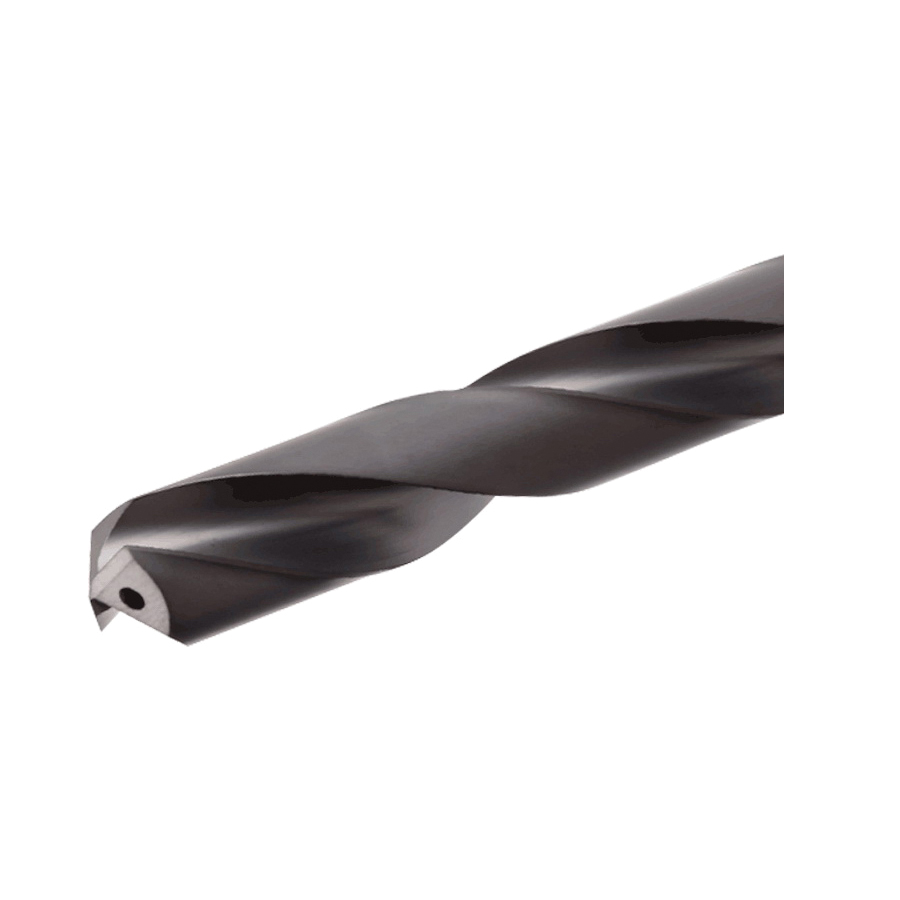

Iscar 6154661 SOLIDDRILL Jobber Length Drill Bit, 9.1 mm Drill - Metric, 0.3583 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, TiAlN Coated

UNSPSC: 23241634
Manufacturer PN: 6154661
$254.50 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Jobber Length Drill Bit, Series: SOLIDDRILL, Metric, 9.1 mm Drill - Metric, 0.3583 in Drill - Decimal Inch, 103 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 61 mm Flute Length, 10 mm Shank, Cylindrical Shank, 140 deg Point, Standard Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Yes Through Coolant, Submicron Grain Solid Carbide, TiAlN Coated

Specifications

ApplicationHole Making
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.3583 in
Drill Size - Metric9.1 mm
FinishTiAlN Coated
Flute Length61 mm
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length103 mm
Point Angle140 deg
Point TypeStandard
SeriesSOLIDDRILL
Shank Size10 mm
Shank TypeCylindrical
Through Coolant (Yes/No)Yes
