Iscar ISCAR 6154840

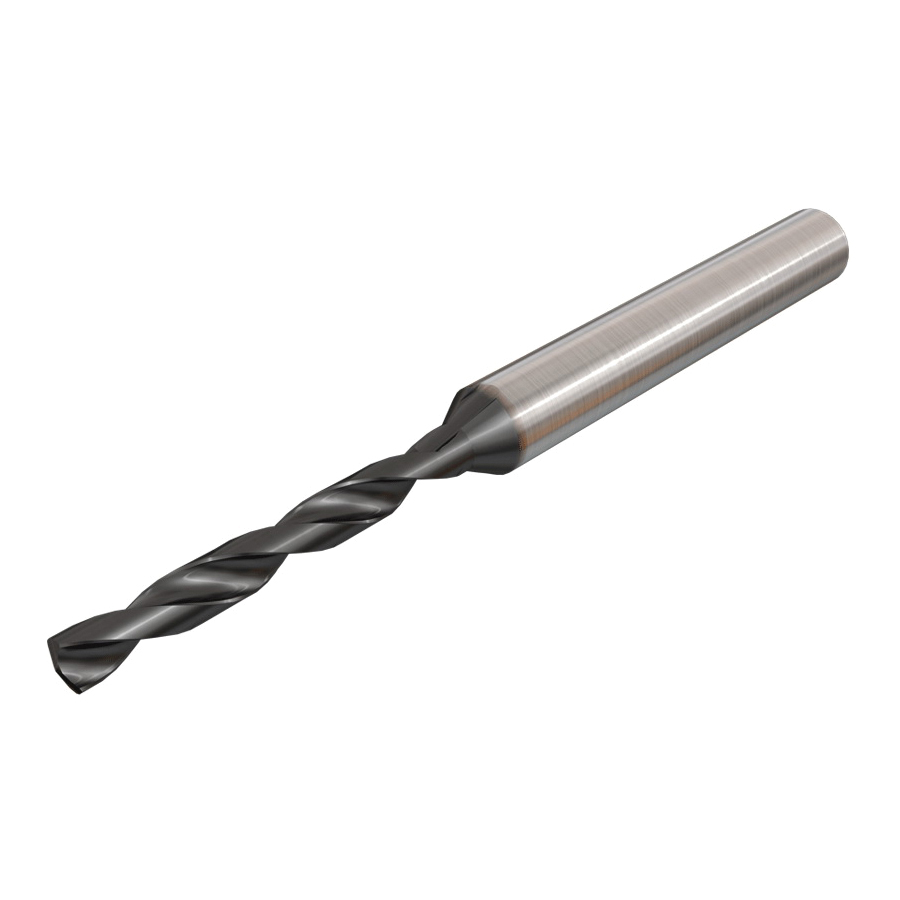

Iscar 6154840 SOLIDDRILL Jobber Length Drill Bit, 5.6 mm Drill - Metric, 0.2205 in Drill - Decimal Inch, 140 deg Point, Submicron Grain Solid Carbide, TiAlN Coated
Invoice description:
Scd 056-035-060 Ap5n 908
Factory Order
Iscar Jobber Length Drill Bit, Series: SOLIDDRILL, Metric, 5.6 mm Drill - Metric, 0.2205 in Drill - Decimal Inch, 82 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 44 mm Flute Length, 6 mm Shank, Cylindrical Shank, 140 deg Point, Standard Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Yes Through Coolant, Submicron Grain Solid Carbide, TiAlN Coated
Specifications
ApplicationHole Making
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.2205 in
Drill Size - Metric5.6 mm
FinishTiAlN Coated
Flute Length44 mm
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length82 mm
Point Angle140 deg
Point TypeStandard
SeriesSOLIDDRILL
Shank Size6 mm
Shank TypeCylindrical
Through Coolant (Yes/No)Yes
Additional Information
Standards/ApprovalISO 13399|DIN 6537
