Iscar ISCAR 5669472

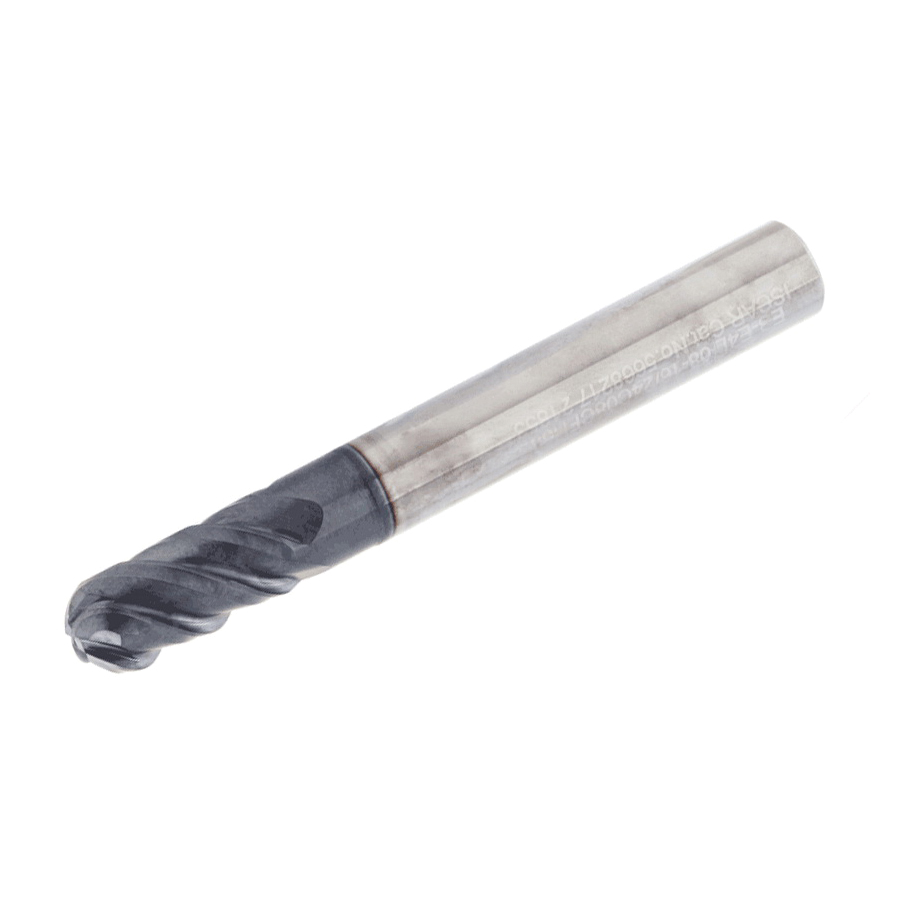

Iscar 5669472 SOLIDMILL Ball Nose End Mill, 1/2 in Dia Cutter, 2XD Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/2 in OAL, PVD-TiAlN Coated

Invoice description: Ebi-e4l 500-1.0/1.4c500c F Klune Pricing

UNSPSC: 27112803
Manufacturer PN: 5669472
$211.48 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Ball Nose End Mill, Series: SOLIDMILL, 1/2 in Cutter Dia, 3-1/2 in Overall Length, 2XD Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 38 deg Helix Angle, ANSI Code: EBI-E4L 500-1.0/1.4C500CF, ISO Code: EBI-A-4, Solid Carbide, PVD-TiAlN Coated

  • Features

  • 4-flute, 38 deg helix ball nose end mills with variable pitch for roughing on hard materials
  • Full slot milling - up to 2XD

Specifications

ApplicationMilling
ANSI CodeEBI-E4L 500-1.0/1.4C500CF
Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeSpiral
Helix Angle38 deg
ISO CodeEBI-A-4
Length of Cut2XD
MaterialSolid Carbide
Number of Flutes4
Overall Length3-1/2 in
SeriesSOLIDMILL
Shank Diameter1/2 in

Additional Information

Standards/ApprovalISO 13399
