Fullerton FULLT 27479

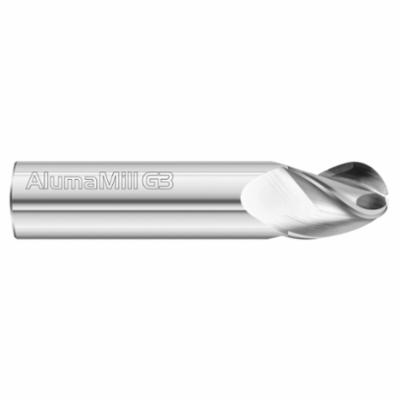

Fullerton 27479 3833 Ball End Center Cutting Single End Stub Length End Mill, 1/2 in Dia Cutter, 5/8 in Length of Cut, 3 Flutes, 1/2 in Dia Shank, 3 in OAL, Uncoated

Invoice description: E/m 1/2-3fl Ball End Stb

UNSPSC: 23242511
Manufacturer PN: 27479
$76.08 EA
Factory Order
Estimated to ship in 7 days
QTY:


Fullerton End Mill, Ball End Center Cutting Single End Stub Length, Series: E5245, 1/2 in Cutter Dia, 3 in Overall Length, 5/8 in Length of Cut, 3 Flutes, Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 37.5 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, Uncoated

  • Features

  • h6 shank diameter tolerance
  • +0.0000 in, -0.0005 in/+0.000, -0.013 mm cutter diameter tolerance

Specifications

Cutter Diameter1/2 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle37.5 deg
ISO Code9001:2008
Length of Cut5/8 in
MaterialDura Carb
Number of Flutes3
Overall Length3 in
Series3833
Shank Diameter1/2 in
TypeBall End Center Cutting Single End Stub Length

Additional Information

Country of OriginUS
