Iscar ISCAR 3601947

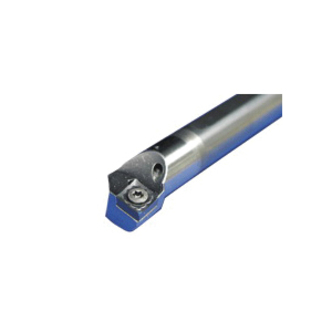

Iscar 3601947 Screw Lock Indexable Boring Bar, 0.46 in Dia Min Bore, Right Hand of Holder, 6 in OAL

Invoice description: E-sclcr 6-2 .375 B-bar Carbide

UNSPSC: 23241601
Manufacturer PN: 3601947
$574.00 EA
Factory Order
Estimated to ship in 7 days
QTY:

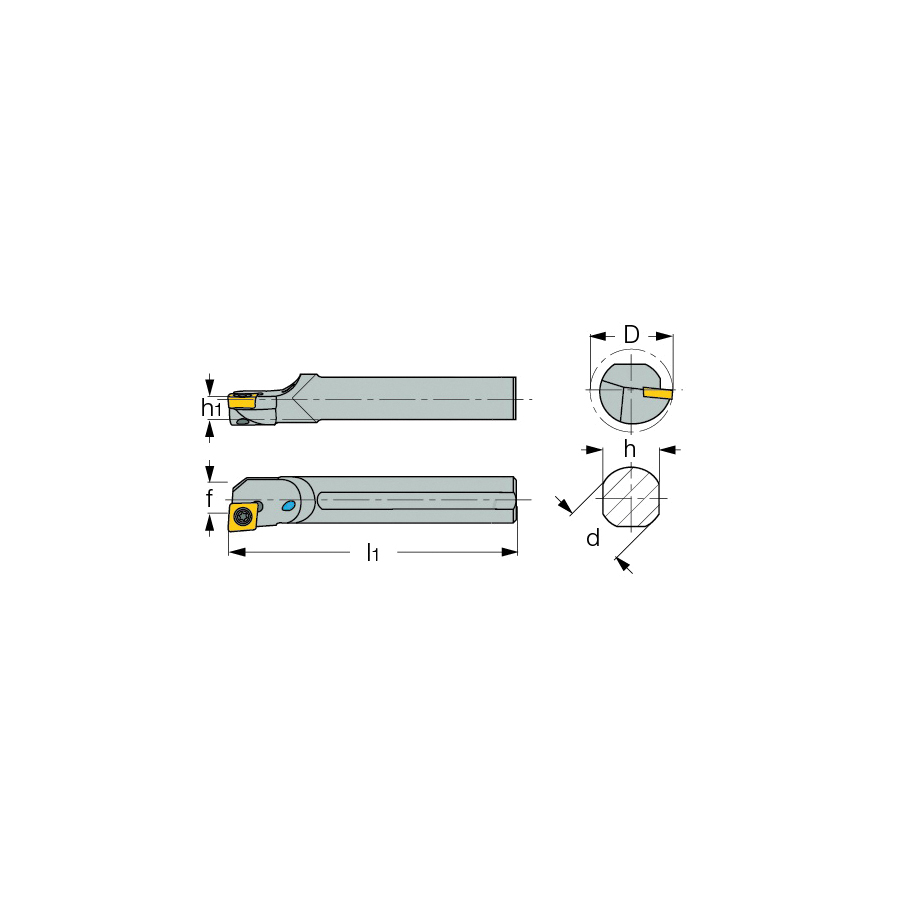

Iscar Indexable Boring Bar, Screw Lock, 0.46 in Minimum Bore Dia, 6 in Overall Length, 3/8 in Shank Dia, Right Hand of Holder, 80 deg Diamond Insert, 7000217 Insert Screw, Carbide, Yes Through Coolant (Yes/No)

  • Features

  • 95 deg approach
  • 1/4 in center to cutting edge
  • 0.189 in cutting edge height
  • 0.342 in shank height
  • 3 deg axial rake
  • -7 deg radial rake
  • ANSI Code: E-SCLCR 6-2

Specifications

ApplicationTurning Applications
Hand of HolderRight
Insert Screw7000217
Insert Shape80 deg Diamond
MaterialCarbide
Minimum Bore Diameter0.46 in
Overall Length6 in
Shank Diameter3/8 in
Through Coolant (Yes/No)Yes
TypeScrew Lock
