Iscar ISCAR 3106631

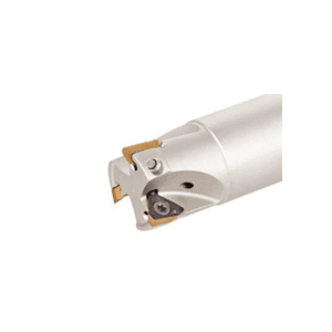

Iscar 3106631 HELIIQMILL Square Shoulder Indexable End Mill With Coolant Through Channel, ANSI Code: HM390 ETP D1.25-4-W1.0-10, 1-1/4 in Dia Cutting, Welded-On Shank, TPKT Insert, 90 deg Lead Angle, 0.315 in Max Depth of Cut

Invoice description: Hm390 Etp D1.25-4-w1.0-1 0 Milling Cutter 1-1/4

UNSPSC: 23241600
Manufacturer PN: 3106631
$700.08 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Indexable End Mill, Square Shoulder, Series: HELIIQMILL, 1-1/4 in Diameter Cutting, 4 in Overall Length, 0.315 in Maximum Depth of Cut, TPKT Insert, 4 Inserts, Insert Compatibility: HM390 TPKT 1003, 1 in Head Length, 1 in Shank Diameter, Welded-On Shank, 3 in Shank Length, ANSI Code: HM390 ETP D1.25-4-W1.0-10, ISO Code: HM390 ETP D1.25-4-W1.0-10, 90 deg Lead Angle, Yes Through Coolant

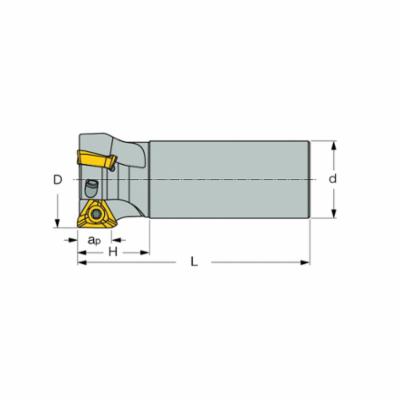

Specifications

ApplicationMilling Applications
ANSI CodeHM390 ETP D1.25-4-W1.0-10
Cutting Diameter1-1/4 in
Head Length1 in
Insert CompatibilityHM390 TPKT 1003
Insert StyleTPKT
ISO CodeHM390 ETP D1.25-4-W1.0-10
Lead Angle90 deg
Maximum Depth of Cut0.315 in
Number of Inserts4
Overall Length4 in
SeriesHELIIQMILL
Shank Diameter1 in
Shank Length3 in
Shank TypeWelded-On
Through Coolant (Yes/No)Yes
TypeSquare Shoulder

Additional Information

Country of OriginIL
