Iscar ISCAR 3106627

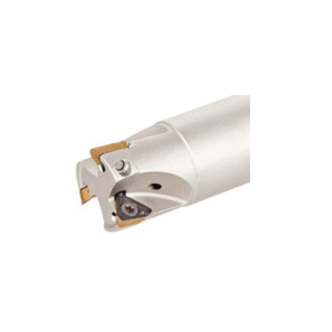

Iscar 3106627 HELIIQMILL Indexable Square-Shoulder Helical End Mill, 1 in Dia Cutting, Weldon Flat Shank, 90 deg Lead Angle, 0.315 in Max Depth of Cut

Invoice description: Hm390 Etp D1.00-3-w1.0-1 0 Milling Cutter 1" Klu

UNSPSC: 27112803
Manufacturer PN: 3106627
$606.63 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Indexable Square-Shoulder Helical End Mill, Series: HELIIQMILL, 1 in Diameter Cutting, 3-3/4 in Overall Length, 0.315 in Maximum Depth of Cut, Insert Compatibility: HM390 TPKT 1003, 1 in Head Length, 1 in Shank Diameter, Weldon Flat Shank, ISO Code: HM390 ETP D1.00-3-W1.0-10, 90 deg Lead Angle, Yes Through Coolant

Specifications

Cutting Diameter1 in
Head Length1 in
Insert CompatibilityHM390 TPKT 1003
ISO CodeHM390 ETP D1.00-3-W1.0-10
Lead Angle90 deg
Maximum Depth of Cut0.315 in
Overall Length3-3/4 in
SeriesHELIIQMILL
Shank Diameter1 in
Shank TypeWeldon Flat
Through Coolant (Yes/No)Yes

Additional Information

Country of OriginIL
