Ingersoll ING 5802603

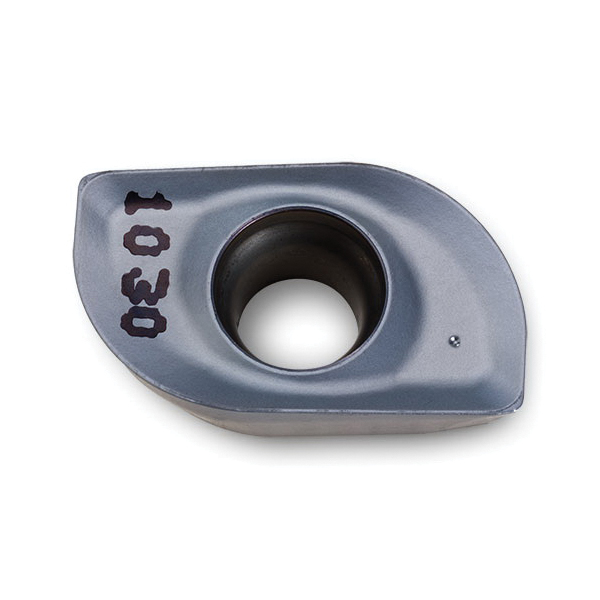

Ingersoll HI-POS 5802603 APKT16 Multi-Purpose Milling Insert, ANSI Code: APEB53R05 IN1030, APEB Insert, 53 Insert, Carbide, Manufacturers Grade: IN1030, Rhombic Shape
Invoice description:
Apkt 160464 In1030 Grade I2120a
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5802603
$25.30 EA
Factory OrderEstimated to ship in 14 days
Ingersoll HI-POS Milling Insert, Multi-Purpose, Series: APKT16, APEB Insert, 53 Insert, Rhombic, 0.207 in Thickness, 3/8 in Width, 0.66 in Length, 1/4 in Corner Radius, Positive Rake, Manufacturers Grade: IN1030, ANSI Code: APEB53R05 IN1030, Right Hand, Carbide, TiCN Coated, Steel, Stainless Steel, Non-Ferrous Metals and High Temperature Alloys Material Application
Features
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat on face for producing surface finishes as good as 32 Ra
- Diverse corner configurations
Specifications
ANSI CodeAPEB53R05 IN1030
Corner Radius1/4 in
FinishTiCN Coated
Hand of InsertRight
Insert Size53
Insert StyleAPEB
Length0.66 in
Manufacturers GradeIN1030
MaterialCarbide
Material ApplicationSteel, Stainless Steel, Non-Ferrous Metals and High Temperature Alloys
RakePositive
SeriesAPKT16
ShapeRhombic
Thickness0.207 in
TypeMulti-Purpose
Width3/8 in
