Ingersoll ING 5801705

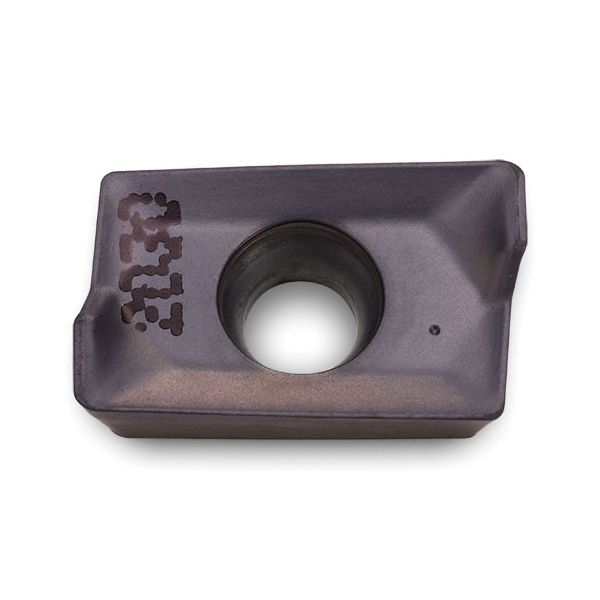

Ingersoll 5801705 APKT12 Multi-Purpose Milling Insert, ANSI Code: APLH42R01 IN1030, APLH Insert, 42 Insert, Carbide, Manufacturers Grade: IN1030, Rhombic Shape

Pack Size: 10
UNSPSC: 23242107
Manufacturer PN: 5801705
$21.28 EA
Factory Order
Estimated to ship in 14 days
QTY:


Ingersoll Milling Insert, Multi-Purpose, Series: APKT12, APLH Insert, 42 Insert, Rhombic, 0.15 in Thickness, 0.312 in Width, 0.48 in Length, 0.031 in Corner Radius, Positive Rake, Manufacturers Grade: IN1030, ANSI Code: APLH42R01 IN1030, Right Hand, Carbide, TiCN Coated, Steel, Stainless Steel, Non-Ferrous Metals and High Temperature Alloys Material Application

  • Features

  • Pressed rake face geometry promotes efficient chip formation
  • Integrated wiper flat on face for producing surface finishes as good as 32 Ra
  • Diverse corner configurations

Specifications

ANSI CodeAPLH42R01 IN1030
Corner Radius0.031 in
FinishTiCN Coated
Hand of InsertRight
Insert Size42
Insert StyleAPLH
Length0.48 in
Manufacturers GradeIN1030
MaterialCarbide
Material ApplicationSteel, Stainless Steel, Non-Ferrous Metals and High Temperature Alloys
RakePositive
SeriesAPKT12
ShapeRhombic
Thickness0.15 in
TypeMulti-Purpose
Width0.312 in
