Hannibal HAN 61507

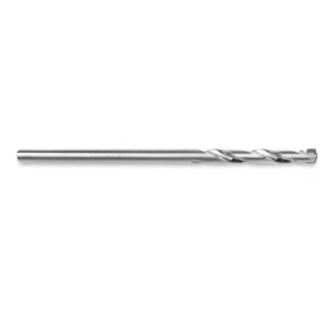

Hannibal 61507 611WLS Aircraft Extension Drill, G Drill - Letter, 0.261 in Drill - Decimal Inch, 135 deg Point, Steel
Invoice description:
Bit Carbide Tipped .261 Di Ltr G Aircraft 12"
Factory Order
Hannibal Aircraft Extension Drill, Series: 611WLS, G Drill Size - Letter, 0.261 in Drill Size - Decimal Inch, 12 in Overall Length, 2-7/8 in Cutting Depth, Spiral Flute, 2-7/8 in Flute Length, 135 deg Point, Split Point, Carbide Cutting Edge, Steel, Applicable Materials: Cast Iron and Non-Ferrous Materials
Features
- Drills are end cutting tools used to produce holes when rapid removal of material is desired
- Twist drills are generally effective in holes up to 3 tool diameters deep - peck cycles should be used for deeper holes to achieve better chip evacuation
- Smooth flutes for effective chip flow
- Precision ground to insure concentricity of tip and body
- Feeds should be light to medium
- 0.004 in lip height tolerance
- +/-5 deg included angle tolerance
- -0.001 in tool diameter tolerance
Specifications
Applicable MaterialsCast Iron and Non-Ferrous Materials
Cutting Depth2-7/8 in
Cutting Edge MaterialCarbide
Drill Size - Decimal Inch0.261 in
Drill Size - LetterG
Flute Length2-7/8 in
Flute TypeSpiral
MaterialSteel
Overall Length12 in
Point Angle135 deg
Point TypeSplit
Series611WLS
Additional Information
Standards/ApprovalASME/ANSI B94.11M|ISO 9001|NAS 907|USCTI Standards
Country of OriginUS
