Fullerton FULLT 15462

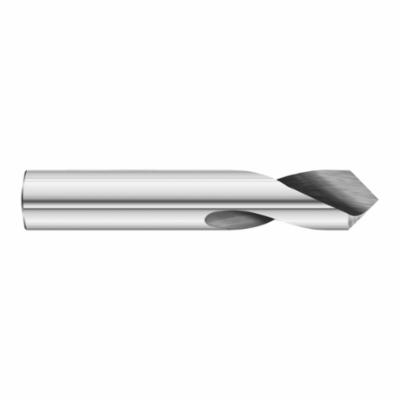

Fullerton 15462 1535 General Purpose Single End Standard Length NC Spotting Drill, 1/4 in Dia, 2-1/2 in OAL, Solid Carbide, Uncoated
Invoice description:
Drill Spotting 1535 Single End .2500 Dia 2.5 Overall Length
Factory Order
Fullerton NC Spotting Drill, General Purpose Single End Standard Length, Series: 1535, 1/4 in Dia, 2-1/2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 1 in Flute Length, 1/4 in Shank, Round Shank, 90 deg Point, Cam Relieved Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, Uncoated, Applicable Materials: Brass, Copper, Graphite, Cast Iron, Hardened Steel, Stainless Steel, Superalloy and Titanium
Features
- +0.0000 to -0.0005 in/+0.000 to 0.013 mm cutting diameter tolerance
Specifications
Applicable MaterialsBrass, Copper, Graphite, Cast Iron, Hardened Steel, Stainless Steel, Superalloy and Titanium
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Diameter1/4 in
FinishUncoated
Flute Length1 in
Flute TypeRight Spiral
MaterialSolid Carbide
Number of Flutes2
Overall Length2-1/2 in
Point Angle90 deg
Point TypeCam Relieved
Series1535
Shank Size1/4 in
Shank TypeRound
TypeGeneral Purpose Single End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
