GARR GARR 91040

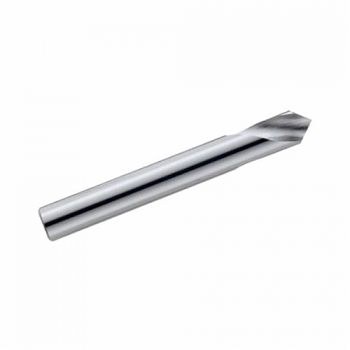

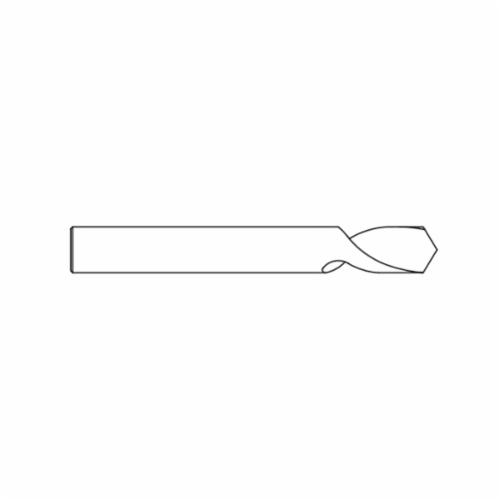

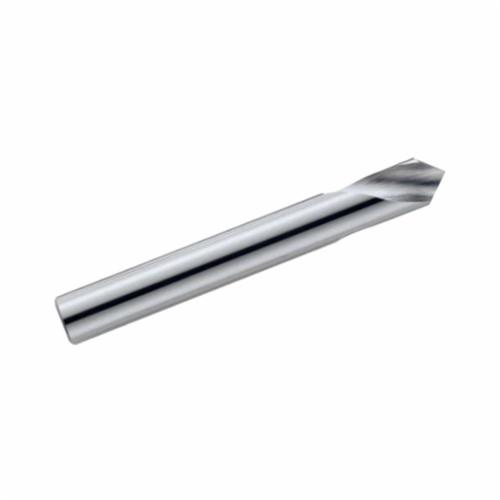

GARR 91040 1600 General Purpose NC Spotting Drill, 1/2 in Dia, 4 in OAL, Submicron Grain Solid Carbide, Uncoated

Invoice description: Spotdrill 1/2 90deg 2fl 1"fl Length 4"oal

UNSPSC: 23241605
Manufacturer PN: 91040
$60.54 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR NC Spotting Drill, General Purpose, Series: 1600, 1/2 in Dia, 4 in Overall Length, 1 in Cutting Depth, 2 Flutes, Spiral Flute, 1 in Flute Length, 1/2 in Shank, 90 deg Point, Cam Relieved Point, Right Hand Cutting, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Uncoated, Applicable Materials: Cobalt Base Alloy, Nickel Base Alloy, Iron Base Alloy, Monel, Titanium Alloy, Stainless Steel, High Strength Tool Steels, Medium Alloy Tool Steel, Carbon Steel, Cast Material, Aluminum, Magnesium, Copper, Brass, Bronze and Composite Material

  • Features

  • Spotting to stabilize long drills
  • Rough, angled or spherical surfaces
  • For locating on true position
  • Live tooling recommended on lathe processes
  • No O.D. clearance

Specifications

ApplicationFor general purpose applications
Applicable MaterialsCobalt Base Alloy, Nickel Base Alloy, Iron Base Alloy, Monel, Titanium Alloy, Stainless Steel, High Strength Tool Steels, Medium Alloy Tool Steel, Carbon Steel, Cast Material, Aluminum, Magnesium, Copper, Brass, Bronze and Composite Material
Cutting Depth1 in
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Diameter1/2 in
FinishUncoated
Flute Length1 in
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length4 in
Point Angle90 deg
Point TypeCam Relieved
Series1600
Shank Size1/2 in
TypeGeneral Purpose

Additional Information

Country of OriginUS
