CM CM M645G

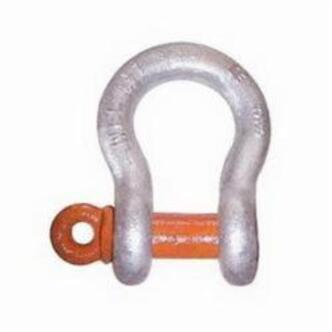

CM M645G Super Strong Anchor Shackle, 0.5 ton Load, 3/16 in, 1/4 in Dia Screw Pin, Galvanized
CM Anchor Shackle, Super Strong, 0.5 ton Load, 3/16 in Size, 1/4 in Pin Diameter, Screw Pin, 7/8 in Inner Length, 0.562 in Inner Width, 3/8 in Opening, 5/8 in Eye Outer, Carbon Steel Body, Alloy Steel Pin, Galvanized
Features
- Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
- Shackles show major deformation before failure
- Working load limit and traceability codes shown as permanent markings on body
- All shackles have alloy quenched and tempered pins
- Shock load testing of assemblies at -30 deg F consistently demonstrate microalloy outperforms quenched and tempered carbon material
- Anchor shackles can be side loaded or used for multiple connections
- 6:1 design factor
- Galvanized finish
Specifications
Body MaterialCarbon Steel
Eye Outer Size5/8 in
FinishGalvanized
Inner Length7/8 in
Inner Width0.562 in
Load Capacity0.5 ton
Opening Size3/8 in
Pin Diameter1/4 in
Pin MaterialAlloy Steel
Pin TypeScrew
Size3/16 in
TypeSuper Strong
