Bessey BESS STC-IHA15

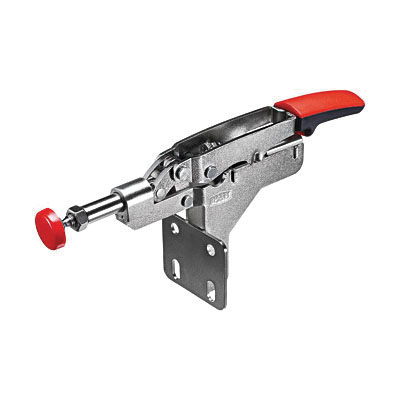

Bessey STC-IHA15 Auto Adjust Inline Low Profile Toggle Clamp With Angled Base Plate, 1035 Steel, 450 lb Holding

UPC: 788502201452
UNSPSC: 27112132
Manufacturer PN: STC-IHA15
$38.62 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey Toggle Clamp, Auto Adjust Inline Low Profile, 450 lb Holding, 25 to 250 lb Clamping, 3.19 in Overall Height, 7.13 in Overall Length, Ergonomic Handle, 1.81 in L x 0.79 in W Handle, Composite Plastic Handle, Angled Base, 1035 Steel, Nickel Plated

  • Features

  • Auto adjusts to variations in work piece height from 0 to 10 mm
  • Integrated pressure screw allows clamping force adjustment from 25 to 250 lb
  • Large ergonomic handle
  • Corrosion resistance, nickel plated coatings inhibit corrosion and extend tool life

Specifications

Base TypeAngled
Clamping Pressure25 to 250 lb
FinishNickel Plated
Handle MaterialComposite Plastic
Handle Size1.81 in L x 0.79 in W
Handle TypeErgonomic
Holding Capacity450 lb
Material1035 Steel
Overall Height3.19 in
Overall Length7.13 in
TypeAuto Adjust Inline Low Profile
