Bessey BESS STC-HV20

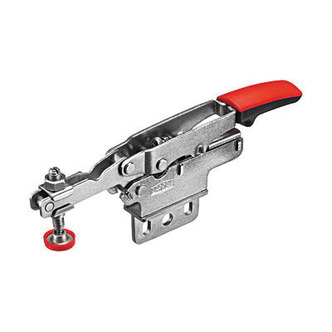

Bessey STC-HV20 Auto Adjust Horizontal Low Profile Toggle Clamp With Vertical Base Plate, 1035 Steel, 450 lb Holding
Invoice description:
Clamp, Toggle Clamp, Hor Iz 26 Ntal Low Profi
UPC: 788502201421
UNSPSC:
27112132
Manufacturer PN: STC-HV20
$39.86 EA
Factory OrderEstimated to ship in 14 days
Bessey Toggle Clamp, Auto Adjust Horizontal Low Profile, 450 lb Holding, 25 to 250 lb Clamping, 2.56 in Overall Height, 6.57 in Overall Length, Ergonomic Handle, 1.81 in L x 0.79 in W Handle, Composite Plastic Handle, Vertical Base, 1035 Steel, Nickel Plated
Features
- Auto adjusts to variations in work piece height from 0 to 20 mm
- Integrated pressure screw allows clamping force adjustment from 25 to 250 lb
- Large ergonomic handle
- Corrosion resistance, nickel plated coatings inhibit corrosion and extend tool life
Specifications
Base TypeVertical
Clamping Pressure25 to 250 lb
FinishNickel Plated
Handle MaterialComposite Plastic
Handle Size1.81 in L x 0.79 in W
Handle TypeErgonomic
Holding Capacity450 lb
Material1035 Steel
Overall Height2.56 in
Overall Length6.57 in
TypeAuto Adjust Horizontal Low Profile
Additional Information
Includes3/16 in or M5 Fastener and Non-Marring Plastic Cap
WarrantyLimited Lifetime
Country of OriginCN
