Sandvik Coromant SANC 7080775

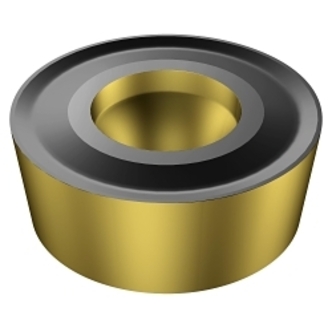

Sandvik Coromant 7080775 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: RCMT 3(2.5) 4335, RCMT Insert, Material Grade: P, 3(2.5) Insert, Round Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide
Invoice description:
Ins Rcmt 09 T3 00 4335
Factory Order
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, RCMT Insert, 3(2.5) Insert, Round, 0.15 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 09 Seat, Positive Rake, 0.187 in Corner Radius, Manufacturers Grade: 4335, ANSI Code: RCMT 3(2.5) 4335, ISO Code: RCMT 09 T3 00 4335, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
Features
- Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Specifications
ApplicationMedium Applications
ANSI CodeRCMT 3(2.5) 4335
Corner Radius0.187 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnSteel
Inscribed Circle3/8 in
Insert Size3(2.5)
Insert StyleRCMT
ISO CodeRCMT 09 T3 00 4335
Manufacturers Grade4335
MaterialCarbide
Material GradeP
Maximum Depth of Cut0.15 in
RakePositive
Relief Angle7 deg
Seat Size09
SeriesCoroTurn 107
ShapeRound
Thickness0.156 in
Type1-Sided Basic Shape
Additional Information
Standards/ApprovalISO Certified
Country of OriginSE
