Union Butterfield UTD 1717534

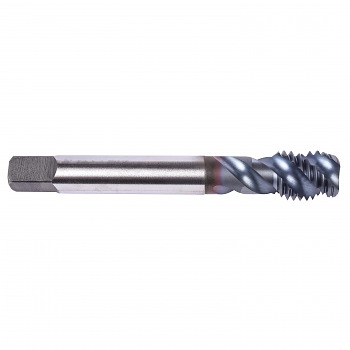

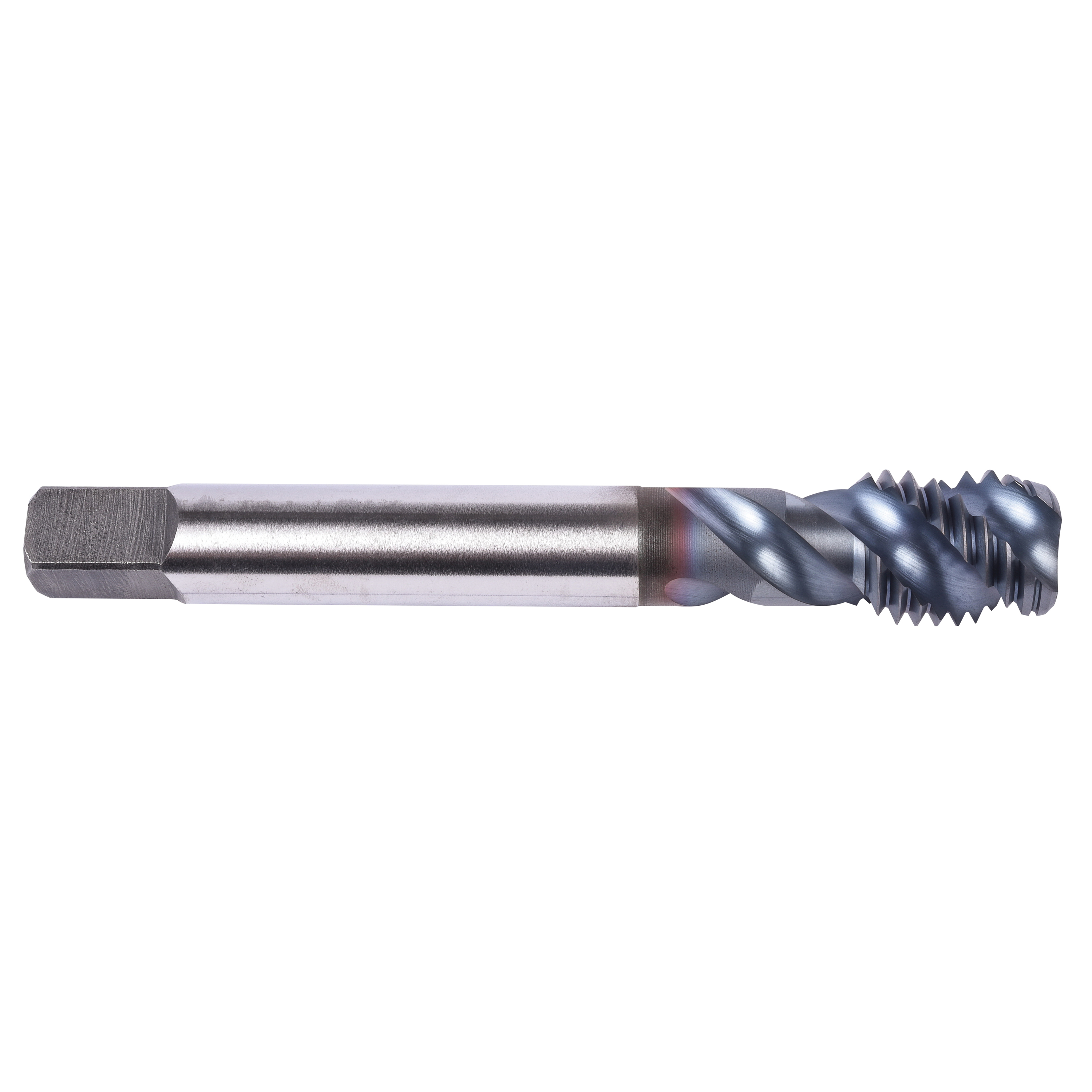

Union Butterfield 6008735 1678 MXL Applix High Performance Spiral Flute Tap, Right Hand Cutting, 1/2-13 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN Coated, HSS
Invoice description:
1678: Applix Spiral Flut E Utd 1717534 Ubc 16
Factory Order
Union Butterfield Spiral Flute Tap, High Performance, Series: 1678 MXL Applix, Measurement System: Imperial, UNC, 1/2-13, Semi-Bottoming Chamfer, 3 Flutes, HSS, TiCN Coated, Class of Fit: 2B/H5, Right Hand Cutting, 0.63 in Thread Length, 4.331 in Overall Length, 0.367 in Shank Dia, Right Hand Flute Direction, Yes Through Coolant (Yes/No)
Features
- Coolant through design allows higher tapping speeds and eliminates the problems associated with inadequate coolant in horizontal or deep hole applications
- Reduced shank
Specifications
ApplicationFor multi applications
Chamfer TypeSemi-Bottoming
Class of Fit2B/H5
Cutting DirectionRight Hand
Finish/CoatingTiCN Coated
Flute DirectionRight Hand
MaterialHSS
Measurement SystemImperial
Number of Flutes3
Overall Length4.331 in
Series1678 MXL Applix
Shank Diameter0.367 in
Thread Length0.63 in
Thread Size1/2-13
Thread StandardUNC
Through Coolant (Yes/No)Yes
TypeHigh Performance
Additional Information
Standards/ApprovalANSI Specified|DIN Rated|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
