Dormer UTD 0123850

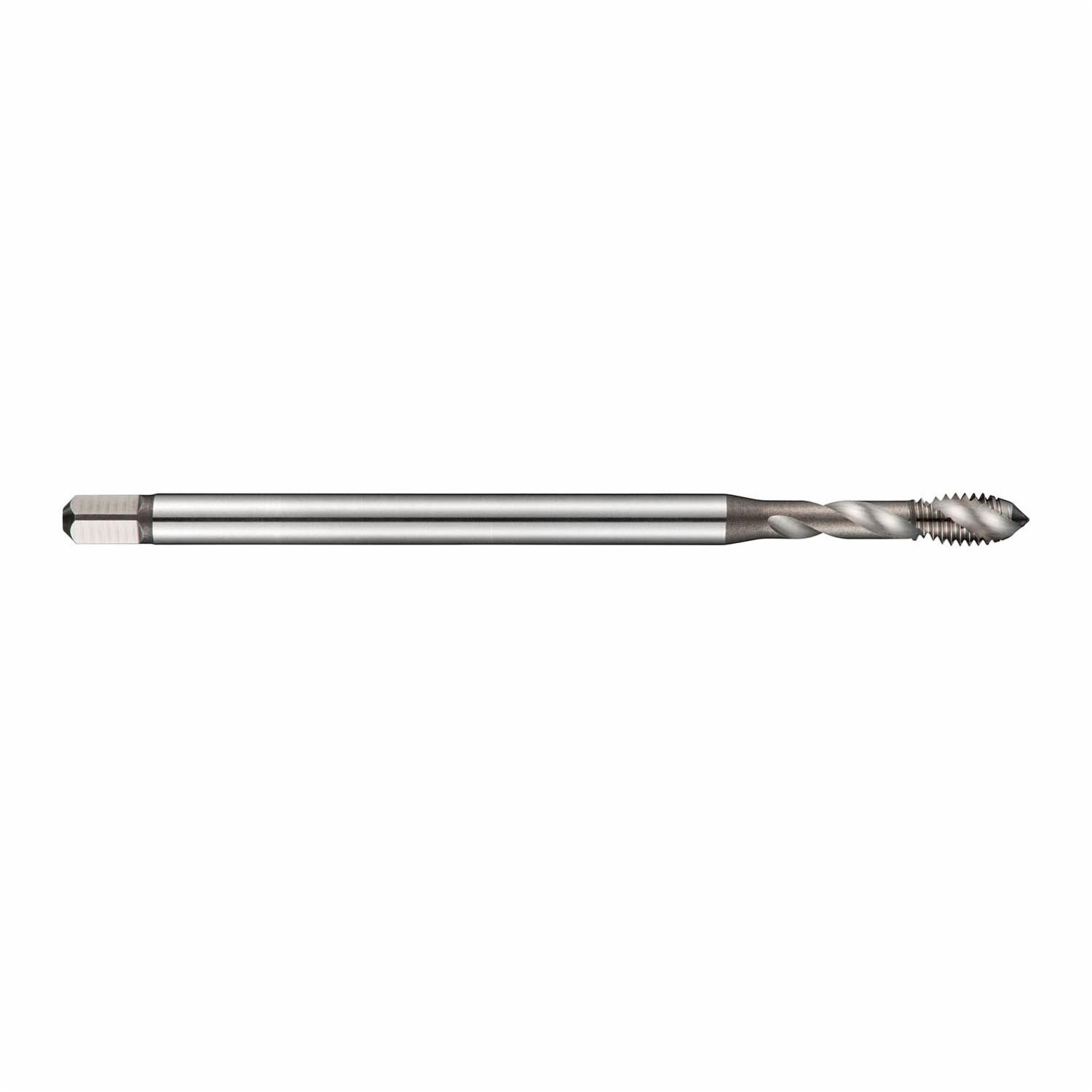

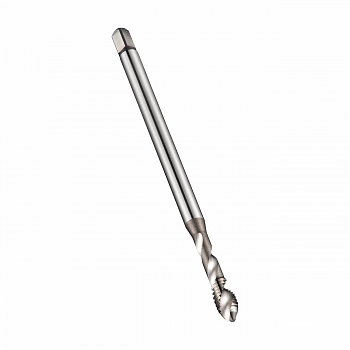

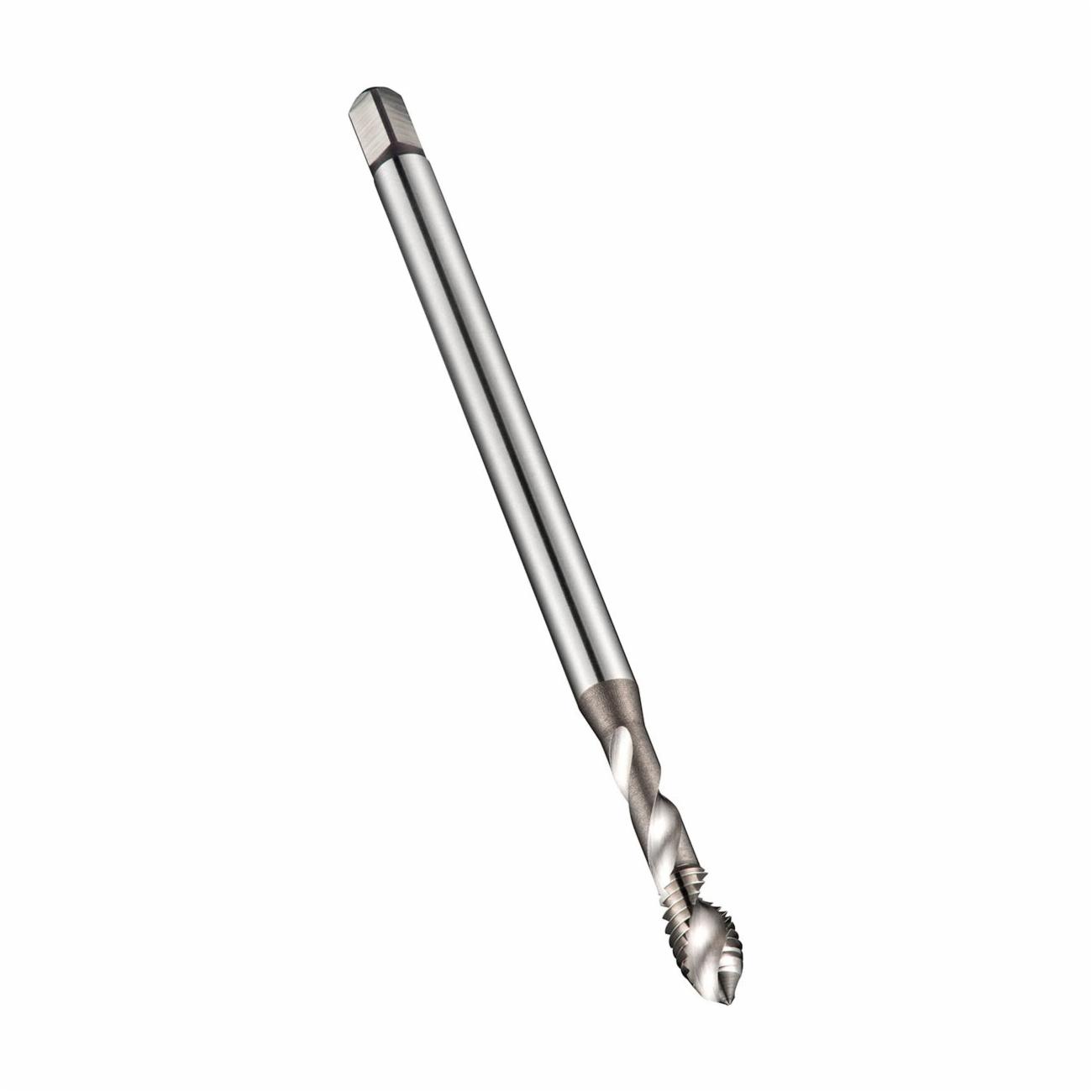

Dormer 5977927 E605 Extra Long Spiral Flute Machine Tap, Right Hand Cutting, M4x0.7 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 2 Flutes, Bright, HSS-E
Invoice description:
E605 Hsco Long Shank Tap S Spiral Flute E605
Factory Order
Dormer Spiral Flute Machine Tap, Extra Long, Series: E605, Measurement System: Metric, M4x0.7, Semi-Bottoming Chamfer, 2 Flutes, HSS-E, Bright, Class of Fit: 6H, Right Hand Cutting, 9 mm Thread Length, 73 mm Overall Length, 4 mm Shank Dia, Right Hand Flute Direction
Features
- High speed steel contains cobalt for increased hot hardness
- The composition of HSCo is a good combination of toughness and hardness
- It has good machinability and good wear resistance
- 2XD cutting depth
Specifications
ApplicationFor blind hole applications
Chamfer TypeSemi-Bottoming
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
Flute DirectionRight Hand
MaterialHSS-E
Measurement SystemMetric
Number of Flutes2
Overall Length73 mm
SeriesE605
Shank Diameter4 mm
Thread Length9 mm
Thread SizeM4x0.7
TypeExtra Long
Additional Information
Standards/ApprovalISO 2283
Country of OriginBR
