Union Butterfield UTD 1713056

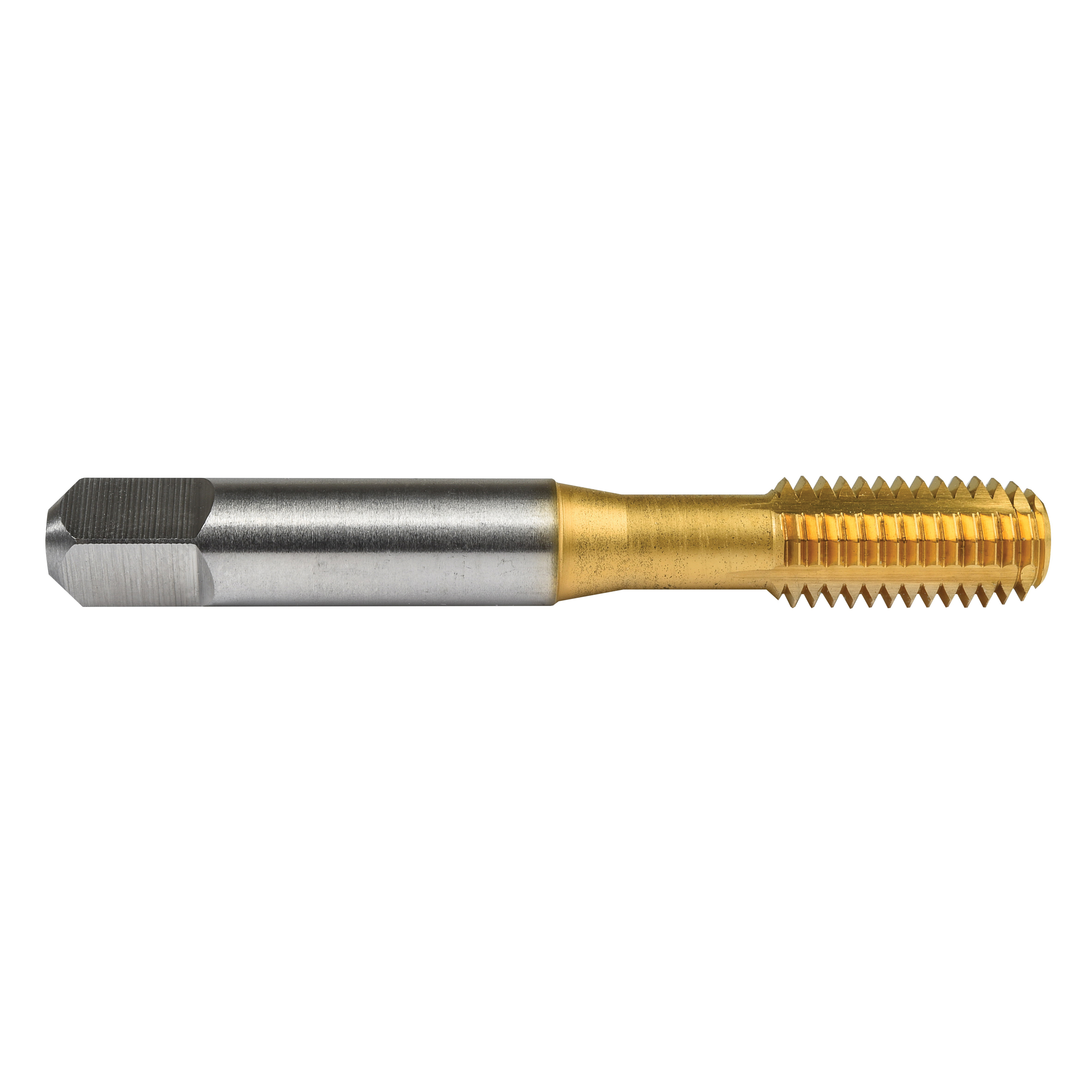

Union Butterfield 6008405 1671 RFD Straight Shank Union Butterfield Forming Tap, M8x1.25 Thread, D9 Thread Limit
Invoice description:
1671: Thread Forming Pro Du Utd 1713056 Ubc 1
Factory Order
Union Butterfield Union Butterfield Forming Tap, Straight Shank, Series: DWDTL, Measurement System: Metric, M8x1.25, Bottoming Chamfer, 11/16 in Thread Length, 2-23/32 in Overall Length, Right Hand Cutting, Class of Fit: 6H, 0.318 in Shank Dia, 0.238 in Square Size, HSS, TiN Coated, D9 Thread Limit
Features
- Premium PM substrate provides superior abrasion resistance and edge strength
- Multiple lube groove design assures lubrication in the forming zone and eliminates the build-up of hydraulic pressure in blind holes
- TiN coated for enhanced performance
- The hard, smooth coating provides a greater lubricity, increases tool life and improves thread flank finish
- The entry taper is full bottoming style for blind hole tapping
Specifications
ApplicationMulti Application
Chamfer TypeBottoming
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingTiN Coated
MaterialHSS
Measurement SystemMetric
Overall Length2-23/32 in
Series1671 RFD
Shank Diameter0.318 in
Square Size0.238 in
Thread Length11/16 in
Thread LimitD9
Thread SizeM8x1.25
TypeStraight Shank
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
