Union Butterfield UTD 1310015

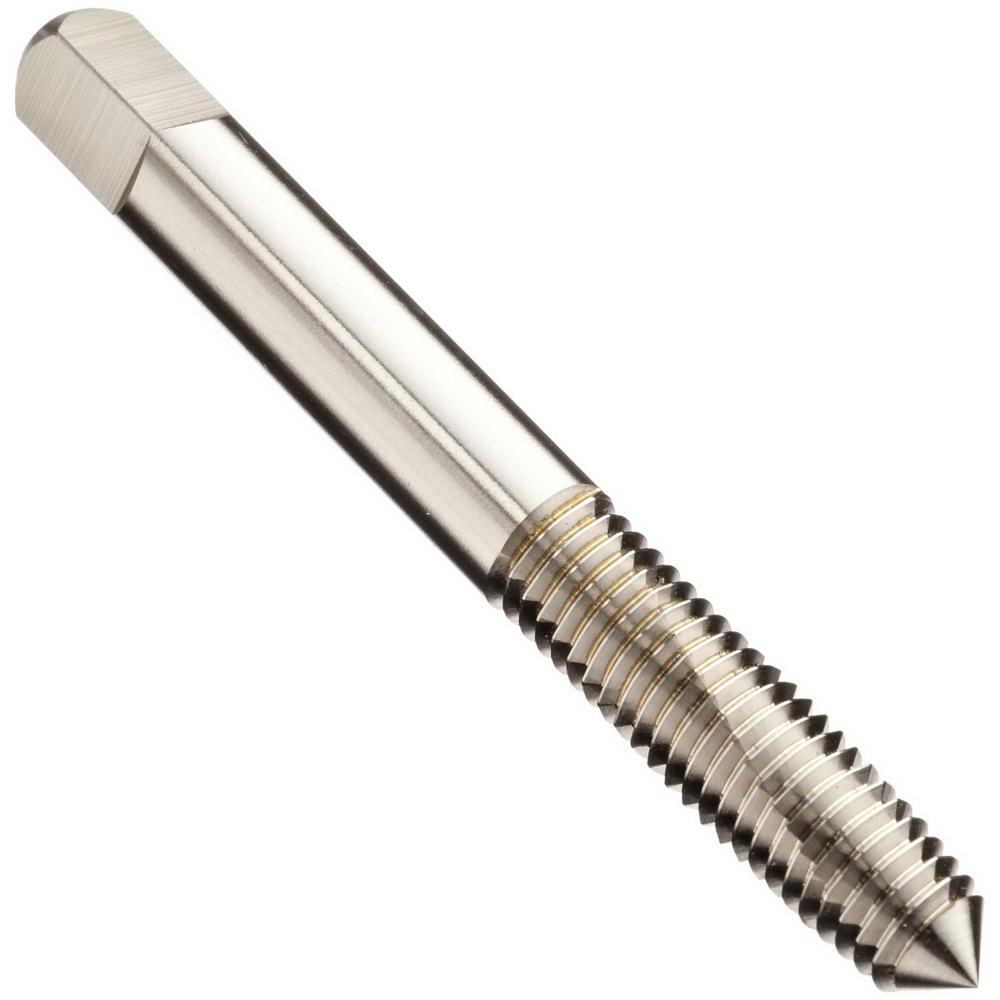

Union Butterfield 6006791 1580 Forming Tap, #4-40 Thread, H5 Thread Limit
Invoice description:
1580 Bottoming Lead: Thr Ea Utd 1310015 Ubc 1
Factory Order
Union Butterfield Forming Tap, Series: 1580, Measurement System: Imperial, #4-40 Thread, UNC Thread Standard, Bottoming Chamfer, 9/16 in Thread Length, 1-7/8 in Overall Length, Right Hand Cutting Direction, Class of Fit: 2B/3B, 0.141 in Shank Diameter, 0.11 in Square, HSS, Bright, H5 Thread Limit
Features
- The Rol-Rite style has a spiral lobe pattern and no oil or lubrication grooves
- For through or blind hole applications
Specifications
ApplicationFor general purpose applications and is particularly suited for through holes in thin sections and for interrupted holes
Chamfer TypeBottoming
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Overall Length1-7/8 in
Series1580
Shank Diameter0.141 in
Square Size0.11 in
Thread Length9/16 in
Thread LimitH5
Thread Size#4-40
Thread StandardUNC
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
