Union Butterfield UTD 1712260

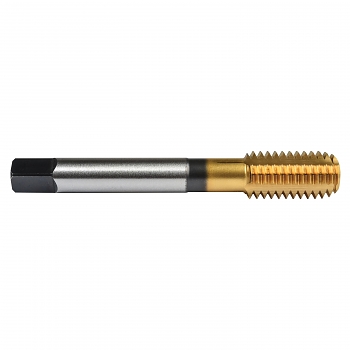

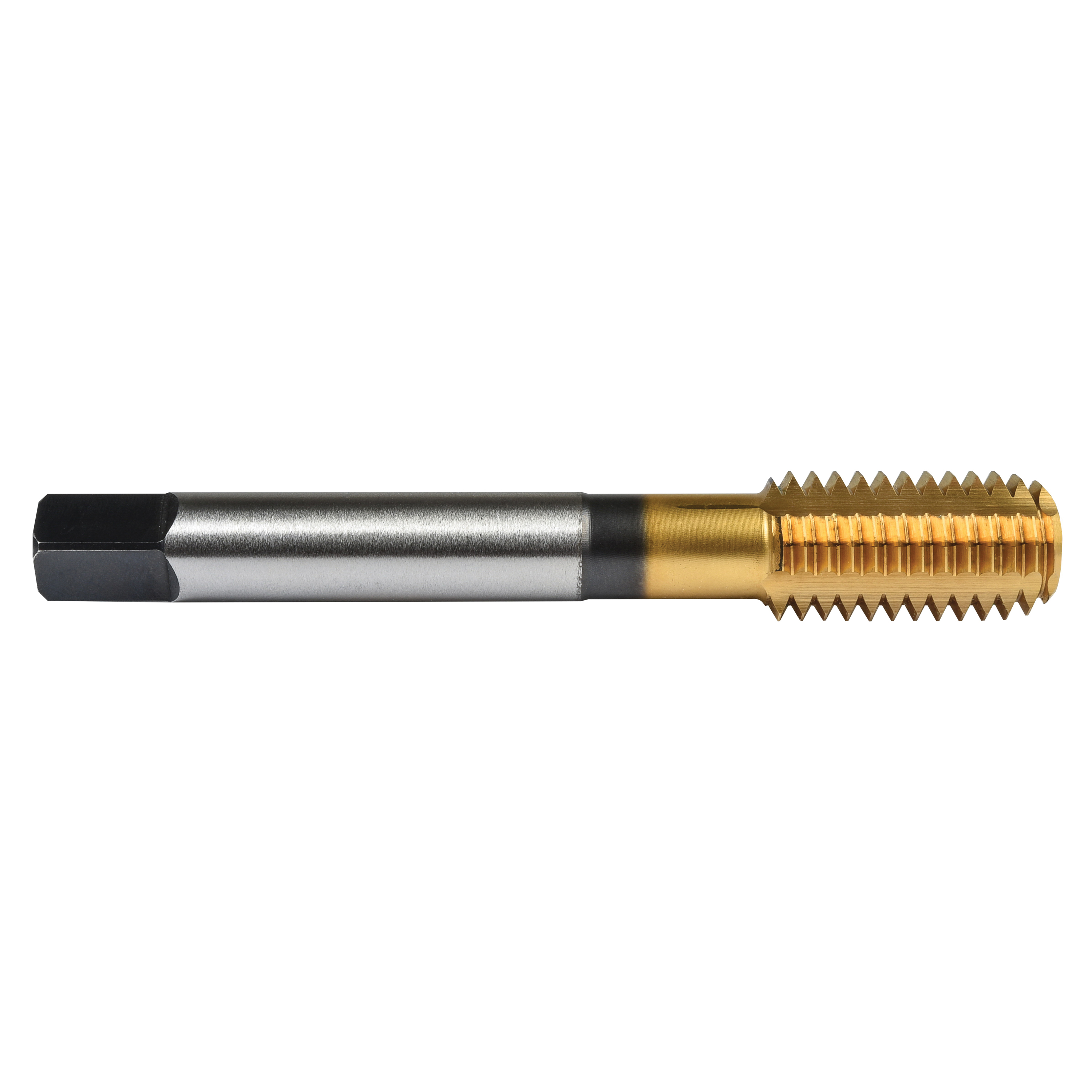

Union Butterfield 6008115 1641 RFD High Performance Forming Tap, #10-32 Thread, H6 Thread Limit
Invoice description:
1641: Thread Forming Pro Du Utd 1712260 Ubc 1
Factory Order
Union Butterfield Forming Tap, High Performance, Series: 1641 RFD, Measurement System: Imperial, #10-32, UNF, Full Bottoming Chamfer, 1/2 in Thread Length, 2-3/8 in Overall Length, Class of Fit: 2B/3B, 0.194 in Shank Dia, 0.152 in Square Size, HSS, TiN Coated, H6 Thread Limit
Features
- Premium PM substrate provides superior abrasion resistance and edge strength
- Multiple lube groove design assures lubrication in the forming zone and eliminates the build-up of hydraulic pressure in blind holes
- TiN coated for enhanced performance
- The hard, smooth coating provides a greater lubricity, increases tool life and improves thread flank finish
- The entry taper is full bottoming style for blind hole tapping
Specifications
ApplicationMulti Application
Chamfer TypeFull Bottoming
Class of Fit2B/3B
Finish/CoatingTiN Coated
MaterialHSS
Measurement SystemImperial
Overall Length2-3/8 in
Series1641 RFD
Shank Diameter0.194 in
Square Size0.152 in
Thread Length1/2 in
Thread LimitH6
Thread Size#10-32
Thread StandardUNF
TypeHigh Performance
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
