Union Butterfield UTD 1321030

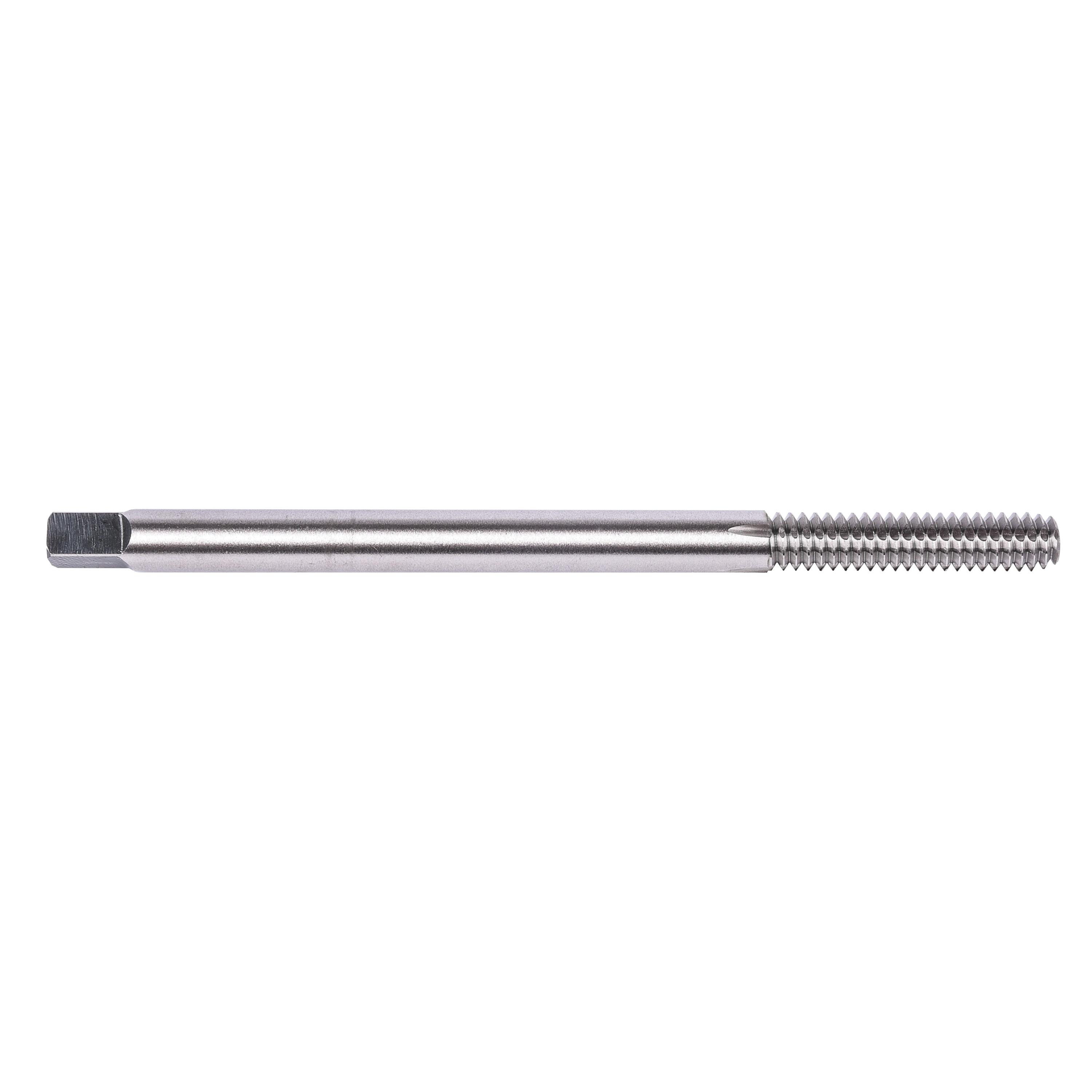

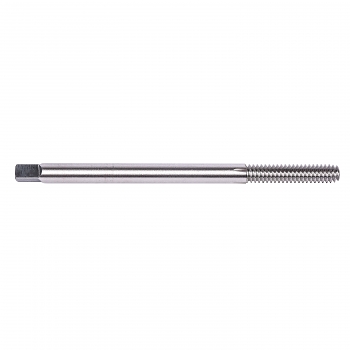

Union Butterfield 1321030 3306E Extension Rol-Form Lube Grooves Forming Tap, #10-32 Thread, H4 Thread Limit
Invoice description:
3306e - H4: Thread Formi Ng Utd 1321030 Ubc 3
Factory Order
Union Butterfield Forming Tap, Extension Rol-Form Lube Grooves, Series: 3306E, Measurement System: Imperial, #10-32, UNF, Bottoming Chamfer, 7/8 in Thread Length, 4 in Overall Length, Right Hand Cutting, Class of Fit: 2B, 0.194 in Shank Dia, #21 Tap Drill, 0.152 in Square Size, HSS, Bright, H4 Thread Limit
Features
- Similar in design and thread geometries to the standard 3300 series but with longer shank lengths than standard
Specifications
ApplicationThrough or Blind Holes Applications
Chamfer TypeBottoming
Class of Fit2B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Overall Length4 in
Series3306E
Shank Diameter0.194 in
Square Size0.152 in
Tap Drill Size#21
Thread Length7/8 in
Thread LimitH4
Thread Size#10-32
Thread StandardUNF
TypeExtension Rol-Form Lube Grooves
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginUS
