Union Butterfield UTD 1310504

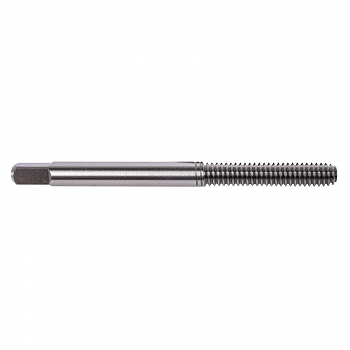

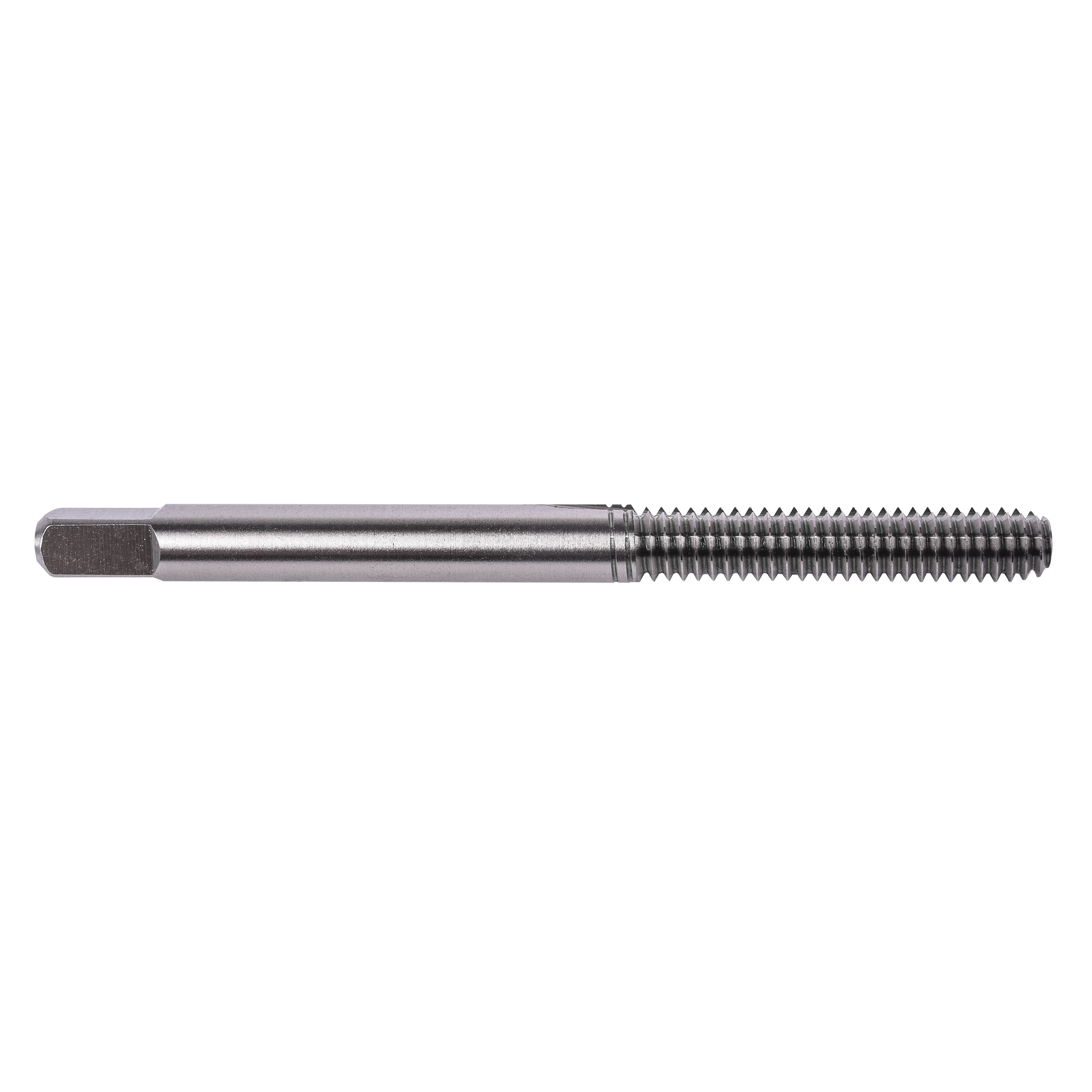

Union Butterfield 6009393 3300 Fluteless Union Butterfield Forming Tap, M5x0.8 Thread, D7 Thread Limit
Invoice description:
3300m Plug Lead: Thread Fo Utd 1310504 Ubc 3
Factory Order
Union Butterfield Union Butterfield Forming Tap, Fluteless, Measurement System: Metric, M5x0.8, Plug Chamfer, 7/8 in Thread Length, 2-3/8 in Overall Length, Right Hand Cutting, Class of Fit: 6H, 0.152 in Shank Dia, 4.2 mm Tap Drill, 1/4 in Square Size, HSS, Bright, D7 Thread Limit
Features
- The Rol-Form style has 2-4 grooves (depending on size) extending the full length of thread to assure lubrication in the forming zone and to eliminate build up of the hydraulic pressure in blind holes
- Particularly suited to blind holes in thin walled die-castings
Specifications
ApplicationFor through or blind holes applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemMetric
Overall Length2-3/8 in
Series3300
Shank Diameter0.152 in
Square Size1/4 in
Tap Drill Size4.2 mm
Thread Length7/8 in
Thread LimitD7
Thread SizeM5x0.8
TypeFluteless
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
