Union Butterfield UTD 1012581
Union Butterfield 6008633 1700S Straight Flute Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D7 Thread Limit
Invoice description:
1700s: Straight Flute Pr Od Utd 1012581 Ubc 1
Factory Order

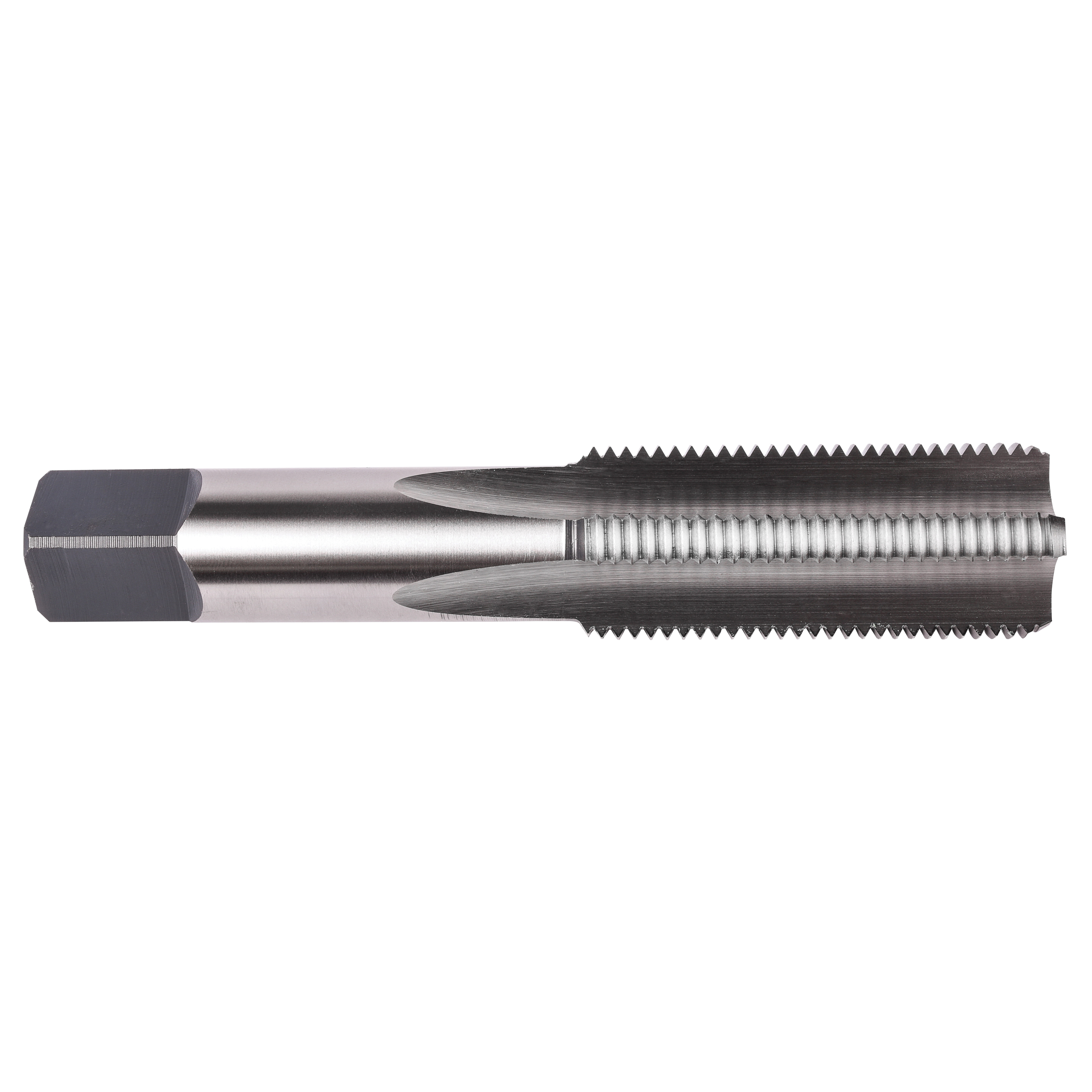

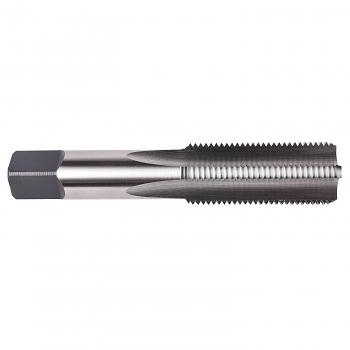

Union Butterfield Hand Tap Set, Straight Flute, Series: 1700S, Measurement System: Metric, 3 Piece, M16x2, 1-13/16 in Thread Length, 3-13/16 in Overall Length, 4 Flutes, Right Hand Cutting, Class of Fit: 6H, 0.48 in Shank Dia, Bottoming/Plug/Taper Chamfer, D7 Thread Limit, 0.36 in Square Size, HSS, Bright, Plastic Case
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
Specifications
ChamferBottoming/Plug/Taper
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemMetric
Number of Flutes4
Number of Pieces3
Overall Length3-13/16 in
Package TypePlastic Case
Series1700S
Shank Diameter0.48 in
SizeM16x2
Square Size0.36 in
Thread Length1-13/16 in
Thread LimitD7
TypeStraight Flute
Additional Information
Includes1012516 Taper, 1012517 Plug and 1012518 Bottoming Taps
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
