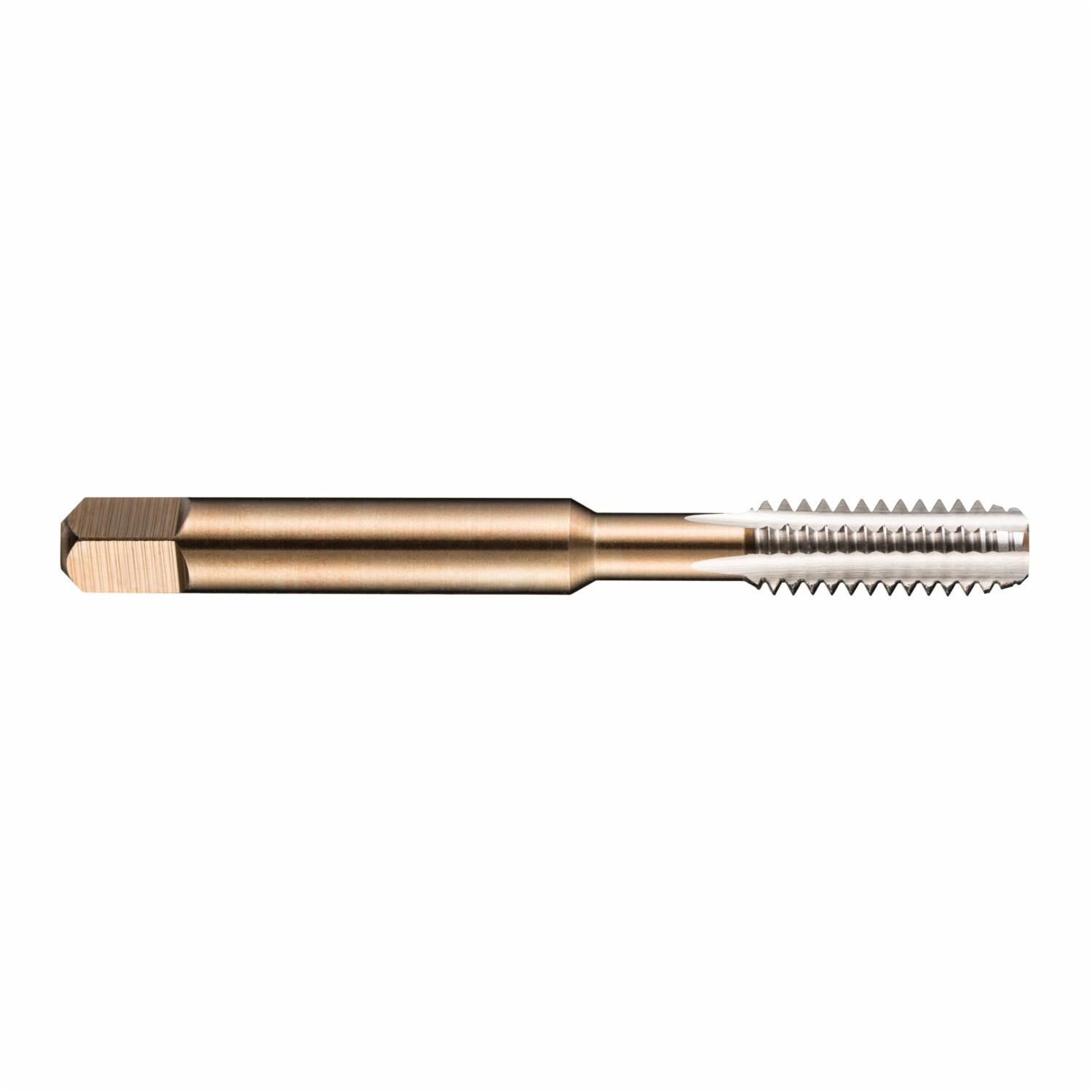

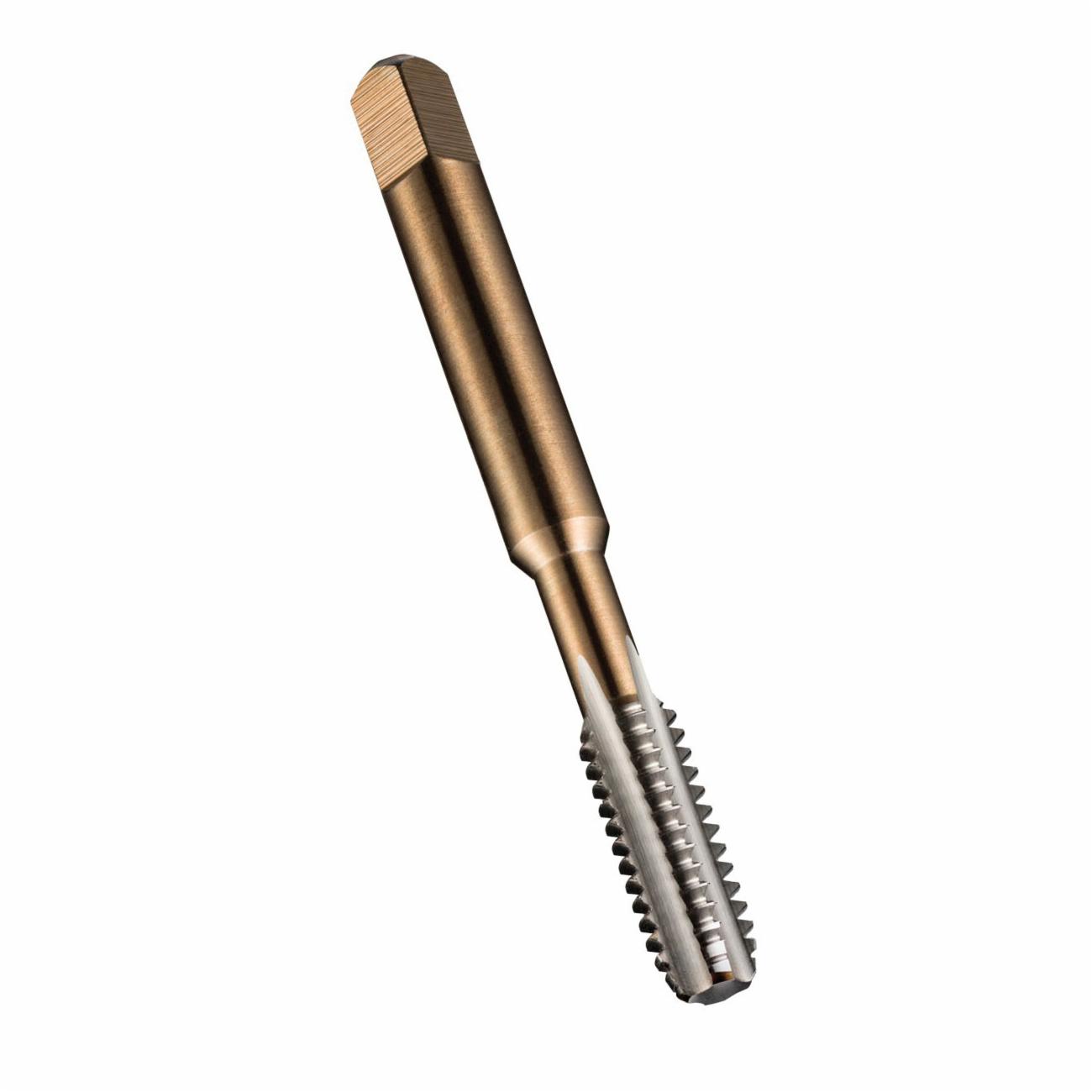

Dormer UTD 0093993

Dormer 5975480 E500 Straight Flute Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer

Invoice description: E500 Hss G/t Taps Str. Flutes Metric Coarse

UNSPSC: 23241615
Manufacturer PN: 5975480
$78.48 EA
Factory Order
QTY:


Dormer Tap Set, Straight Flute, Series: E500, Measurement System: Metric, 3 Piece, M10x1.5, Ground/UNC, 18 mm Thread Length, 80 mm Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 6H, 10 mm Shank Dia, Bottoming/Plug/Taper Chamfer, 8.5 mm Tap Drill, 8 mm Square Size, HSS, Bright

  • Features

  • The most versatile taps for hand use or machine tapping in a wide variety of materials
  • Multiple material suitability
  • Superior quality than normal taps
  • Use for hand tapping and machine tapping

Specifications

ApplicationFor through hole and blind hole applications
ChamferBottoming/Plug/Taper
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemMetric
Number of Flutes3
Number of Pieces3
Overall Length80 mm
SeriesE500
Shank Diameter10 mm
SizeM10x1.5
Square Size8 mm
Tap Drill Size8.5 mm
Thread Length18 mm
Thread StandardGround/UNC
TypeStraight Flute

Additional Information

IncludesTaper, Plug and Bottoming Hand Taps
Standards/ApprovalISO 529
Country of OriginBR
