Union Butterfield UTD 1010915

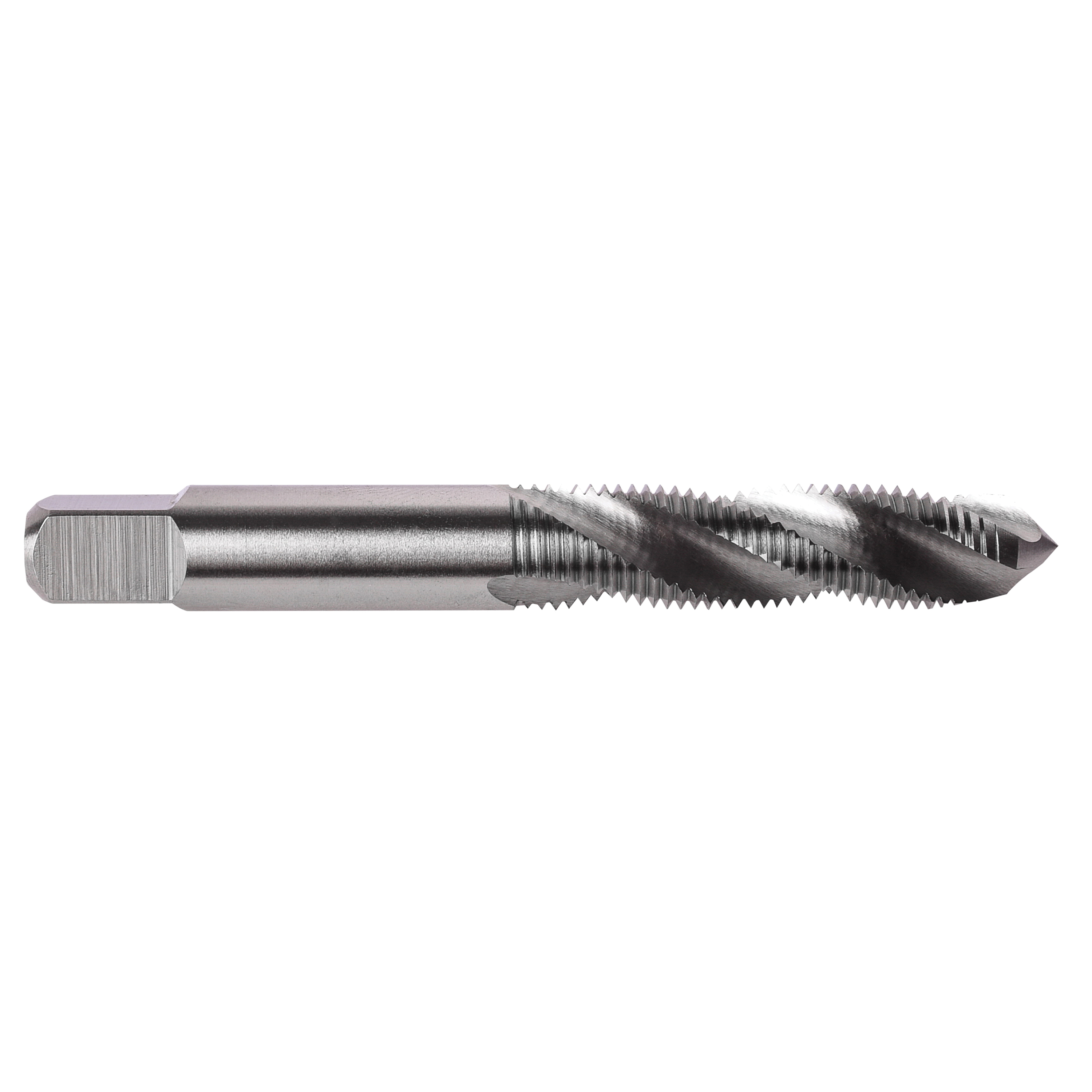

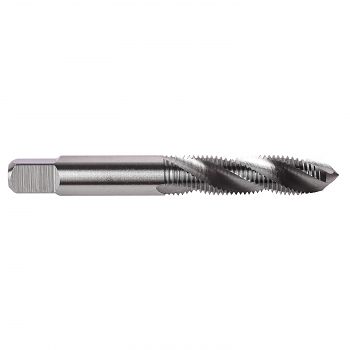

Union Butterfield 6007630 1582 Regular Spiral Flute Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, Plug Chamfer, Right Hand Flute Direction, 2 Flutes, Bright, HSS
Invoice description:
1582 Plug Chamfer: Spira L Utd 1010915 Ubc 15
Factory Order
Union Butterfield Spiral Flute Tap, Regular, Series: 1582, Measurement System: Imperial, UNC Thread Standard, #10-24 Thread, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 3B/H3, Right Hand Cutting Direction, 7/8 in Thread Length, 2-3/8 in Overall Length, 0.194 in Shank Diameter, Right Hand Flute Direction, H3 Thread Limit, Non-Ferrous Materials Material Application, No Through Coolant
Features
- The spiral flute design effectively draws chips out of the hole
- For use when tapping blind or through holes in a variety of materials
- Excellent choice for non-ferrous applications
Specifications
ApplicationBlind Hole and Through Holes applications
Chamfer TypePlug
Class of Fit3B/H3
Cutting DirectionRight Hand
Finish/CoatingBright
Flute DirectionRight Hand
MaterialHSS
Material ApplicationNon-Ferrous Materials
Measurement SystemImperial
Number of Flutes2
Overall Length2-3/8 in
Series1582
Shank Diameter0.194 in
Thread Length7/8 in
Thread LimitH3
Thread Size#10-24
Thread StandardUNC
Through Coolant (Yes/No)No
TypeRegular
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
