Union Butterfield UTD 1010414

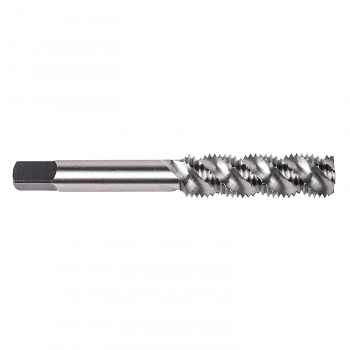

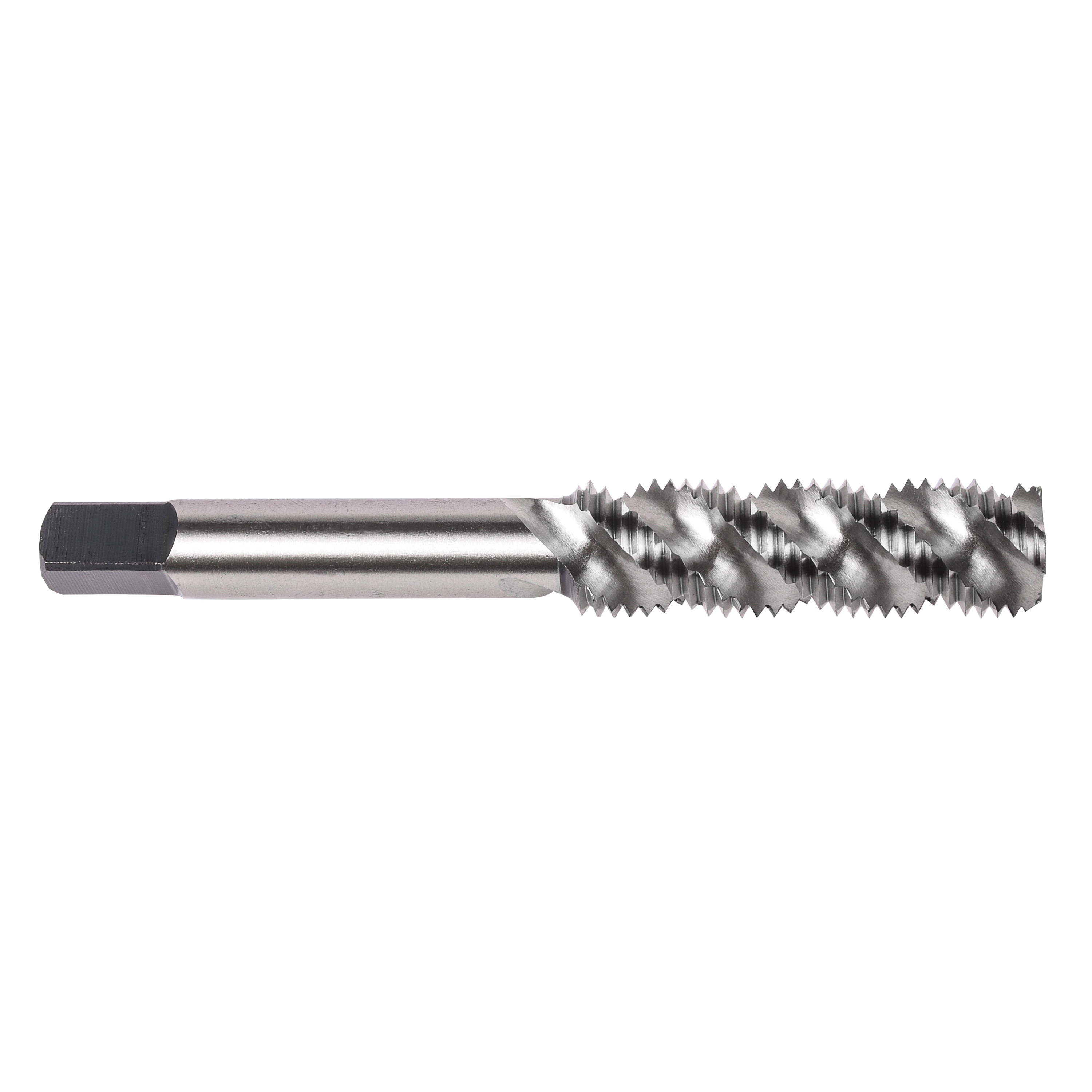

Union Butterfield 6007775 1588 Spiral Flute Tap, Right Hand Cutting, 1/2-13 Thread, H3 Thread Limit, Plug Chamfer, Right Hand Flute Direction, 3 Flutes, Bright, HSS
Invoice description:
1588 Plug Chamfer: Spira L Utd 1010414 Ubc 15
Factory Order
Union Butterfield Spiral Flute Tap, Series: 1588, Measurement System: Imperial, UNC Thread Standard, 1/2-13 Thread, Plug Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 2B/3B/H3, Right Hand Cutting Direction, 1-21/32 in Thread Length, 3-3/8 in Overall Length, 0.367 in Shank Diameter, Right Hand Flute Direction, H3 Thread Limit, Non-Ferrous Materials Material Application, No Through Coolant
Features
- Similar to the regular spiral flute design of 1582/1586 except that the faster spiral improves the chip drawing action and permits the bridging of larger gaps inside a hole
- Excellent choice for non-ferrous applications
Specifications
ApplicationFor blind hole and through hole applications
Chamfer TypePlug
Class of Fit2B/3B/H3
Cutting DirectionRight Hand
Finish/CoatingBright
Flute DirectionRight Hand
MaterialHSS
Material ApplicationNon-Ferrous Materials
Measurement SystemImperial
Number of Flutes3
Overall Length3-3/8 in
Series1588
Shank Diameter0.367 in
Thread Length1-21/32 in
Thread LimitH3
Thread Size1/2-13
Thread StandardUNC
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
