Union Butterfield UTD 1010389

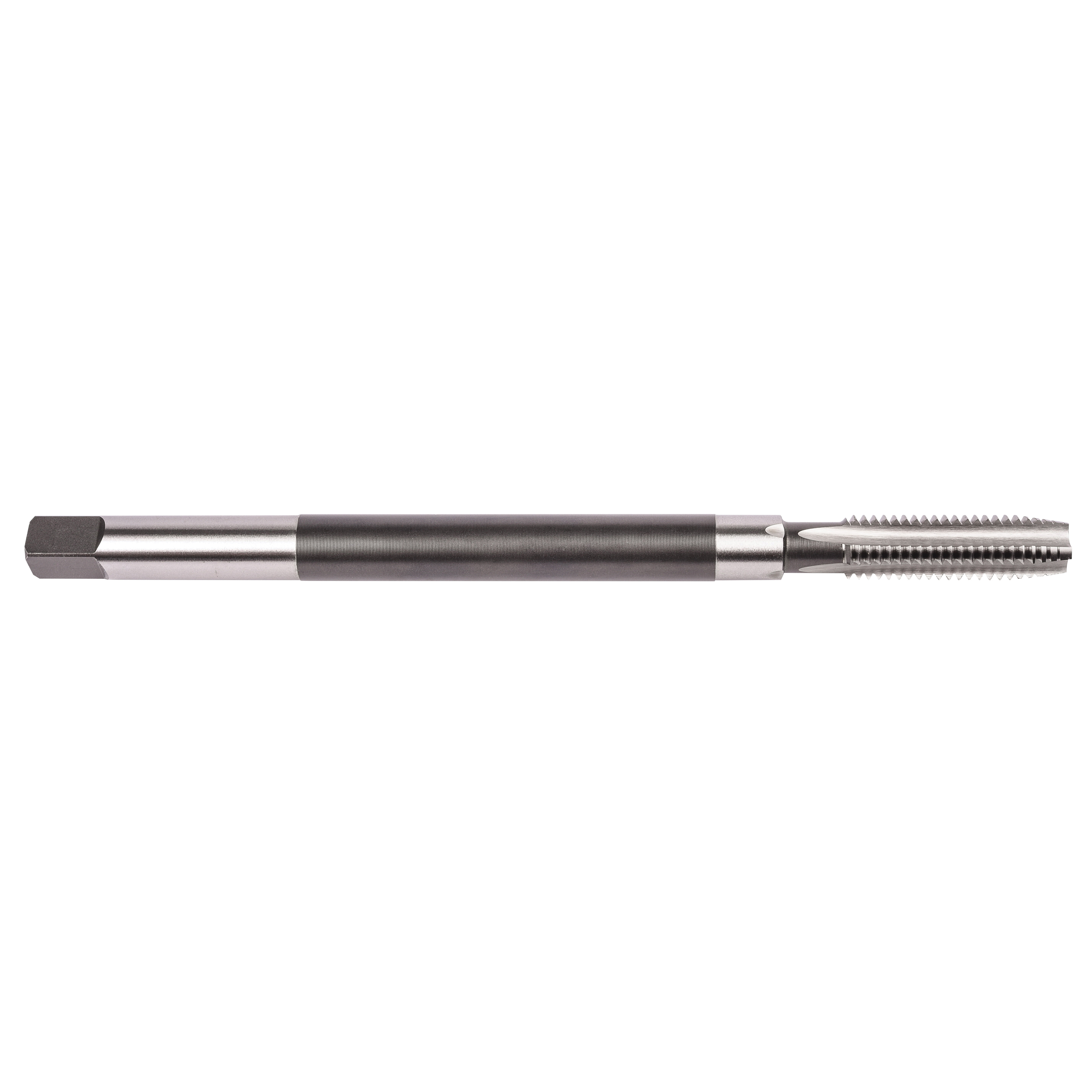

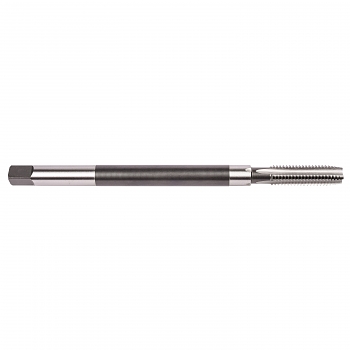

Union Butterfield 6006697 1519 General Purpose Straight Flute Pulley Hand Tap, Plug Chamfer, 1/2-13 Thread, H3 Thread Limit
Invoice description:
1519: Straight Flute Pro Du Utd 1010389 Ubc 1
Factory Order
Union Butterfield Pulley Hand Tap, General Purpose Straight Flute, Series: 1519, Measurement System: Imperial, 1/2-13, UNC, 1-21/32 in Thread Length, 8 in Overall Length, 4 Flutes, Right Hand Cutting, Class of Fit: 3B, 0.507 in Shank Dia, 27/64 in Tap Drill, 0.38 in Square Size, Plug Chamfer, H3 Thread Limit, HSS, Bright
Features
- These taps have the same major diameters and pitch diameters as standard fractional size taps, but with extended shanks for reaching locations inaccessible to regular hand taps
- Although originally designed for tapping pulley holes, the long shank permits tapping other long reach applications
Specifications
ApplicationFor threading blind hole and through hole
ChamferPlug
Class of Fit3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Overall Length8 in
Series1519
Shank Diameter0.507 in
Square Size0.38 in
Tap Drill Size27/64 in
Thread Length1-21/32 in
Thread LimitH3
Thread Size1/2-13
Thread StandardUNC
TypeGeneral Purpose Straight Flute
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
