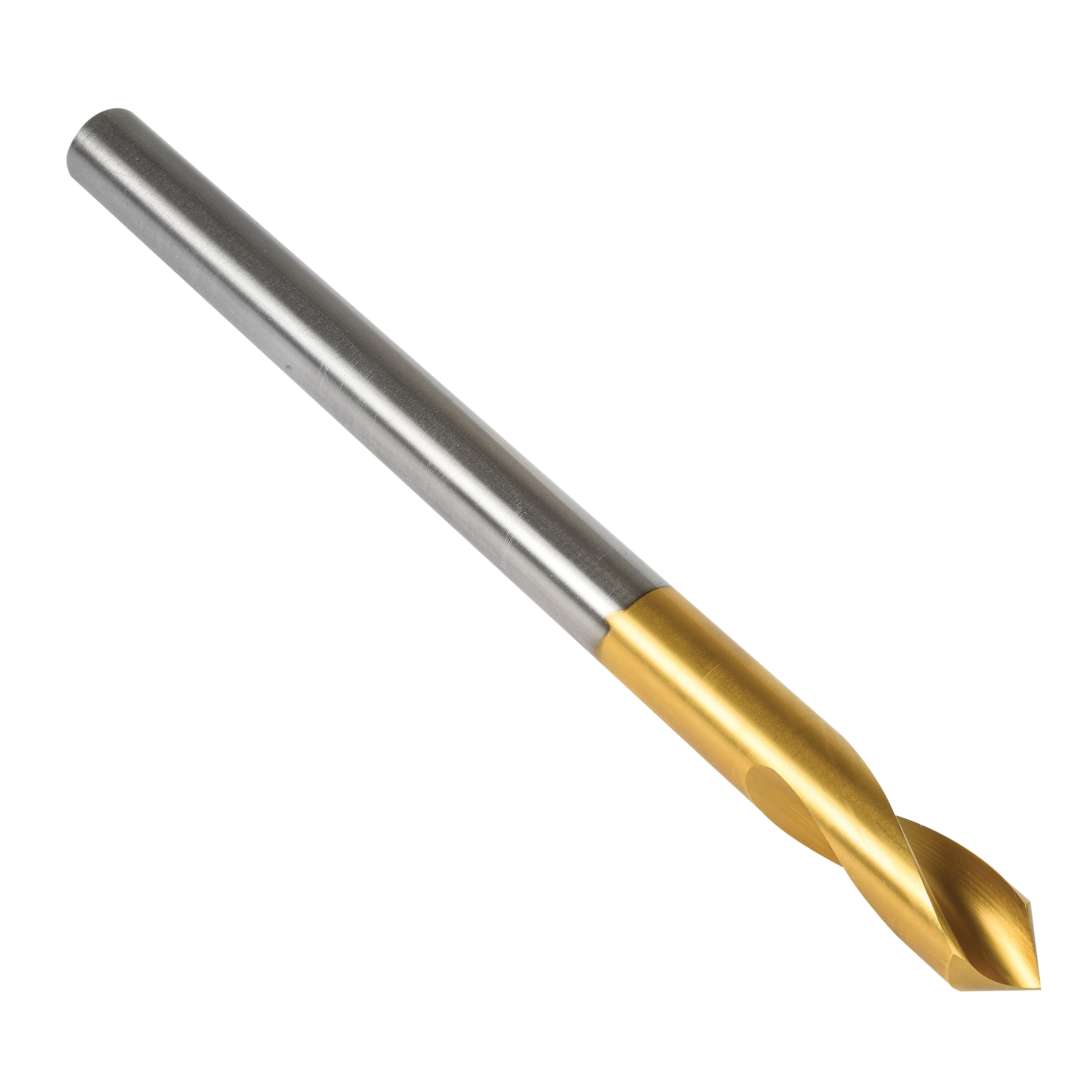

Precision Twist Drill UTD 087980

Precision Twist Drill 6000046 SPLG-120 Long Length Special Purpose Spotting Drill, 1/4 in Dia, 6 in OAL, HSS, TiN Coated

Invoice description: Spot Drill 120 Utd 087980

UPC: 086071879806
UNSPSC: 23241606
Manufacturer PN: 6000046
$80.24 EA
Factory Order
QTY:


Precision Twist Drill Spotting Drill, Long Length Special Purpose, Series: SPLG-120, 1/4 in Diameter, 6 in Overall Length, 1XD Cutting Depth, Spiral Flute, 3/4 in Flute Length, 1/4 in Shank, Straight Shank, 120 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material

  • Features

  • TiN coating for increased wear resistance and improved tool life
  • A medium alloyed high speed steel that has good machinability and good performance
  • HSS exhibits hardness, toughness and wear resistance characteristics that make It attractive in a wide range of applications

Specifications

ApplicationFor light to heavy duty general purpose machining
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Diameter1/4 in
FinishTiN Coated
Flute Length3/4 in
Flute TypeSpiral
MaterialHSS
Overall Length6 in
Point Angle120 deg
Point TypeConventional
SeriesSPLG-120
Shank Size1/4 in
Shank TypeStraight
TypeLong Length Special Purpose

Additional Information

Country of OriginBR
