Precision Twist Drill UTD 087931

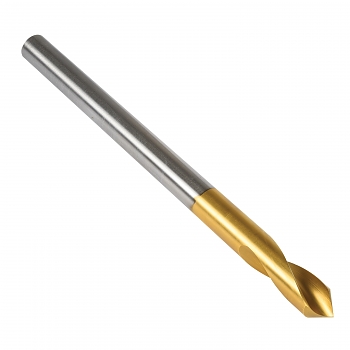

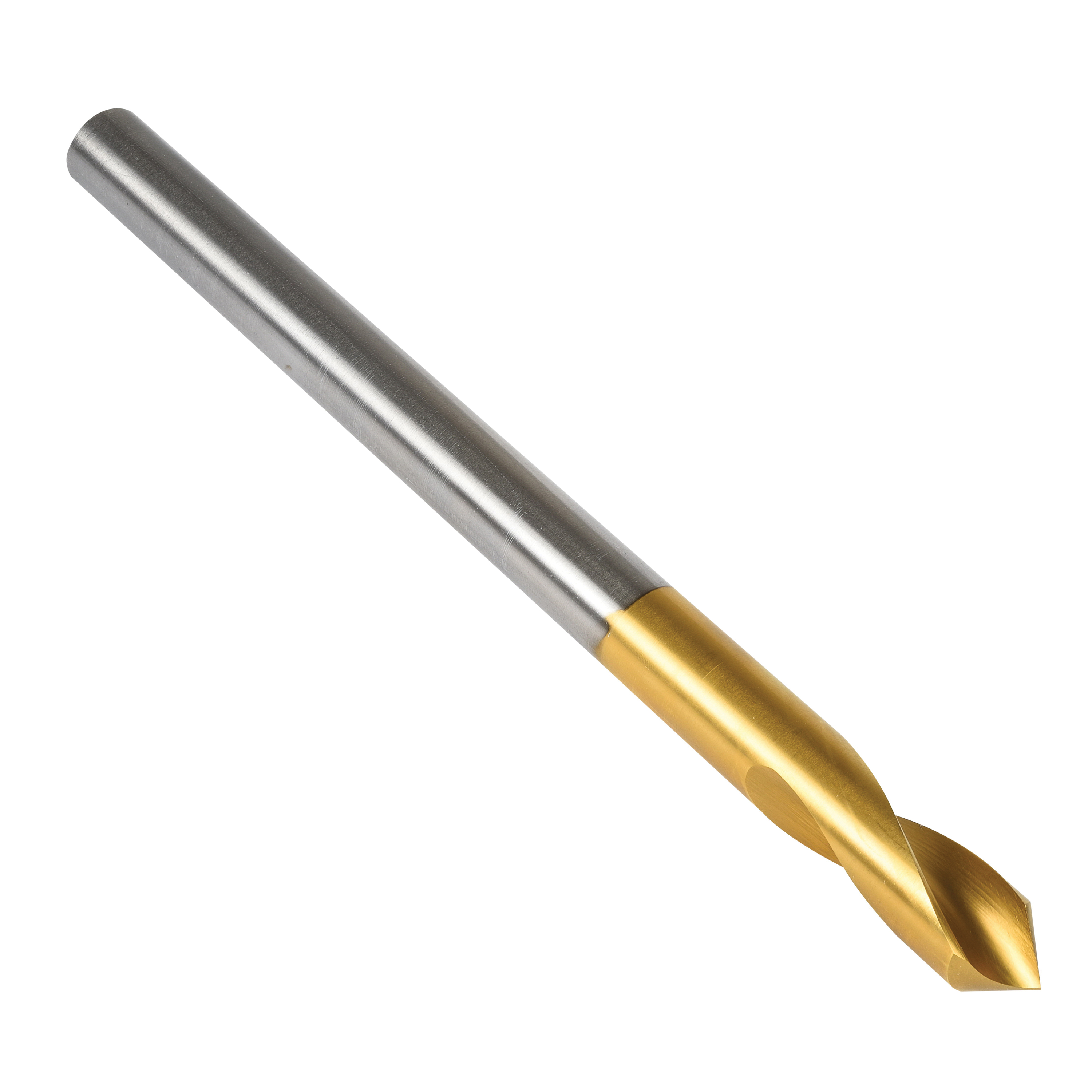

Precision Twist Drill 6000068 SPLG-90 Long Length Special Purpose Spotting Drill, 3/8 in Dia, 7 in OAL, HSS, TiN Coated

Invoice description: Spot Drill Tin Coat Utd 087931

UPC: 086071879318
UNSPSC: 23241606
Manufacturer PN: 6000068
$92.48 EA
Factory Order
QTY:


Precision Twist Drill Spotting Drill, Long Length Special Purpose, Series: SPLG-90, 3/8 in Dia, 7 in Overall Length, 1XD Cutting Depth, Spiral Flute, 1-1/8 in Flute Length, 3/8 in Shank, Straight Shank, 90 deg Point, Conventional Point, Right Hand Cutting, HSS Cutting Edge, HSS, TiN Coated, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material

  • Features

  • TiN coating for increased wear resistance and improved tool life
  • A medium alloyed high speed steel that has good machinability and good performance
  • HSS exhibits hardness, toughness and wear resistance characteristics that make It attractive in a wide range of applications

Specifications

ApplicationFor light to heavy duty general purpose machining
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Diameter3/8 in
FinishTiN Coated
Flute Length1-1/8 in
Flute TypeSpiral
MaterialHSS
Overall Length7 in
Point Angle90 deg
Point TypeConventional
SeriesSPLG-90
Shank Size3/8 in
Shank TypeStraight
TypeLong Length Special Purpose

Additional Information

Country of OriginBR
