Precision Twist Drill UTD 087929

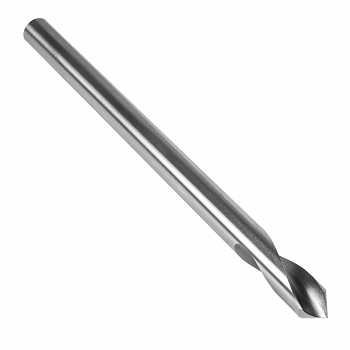

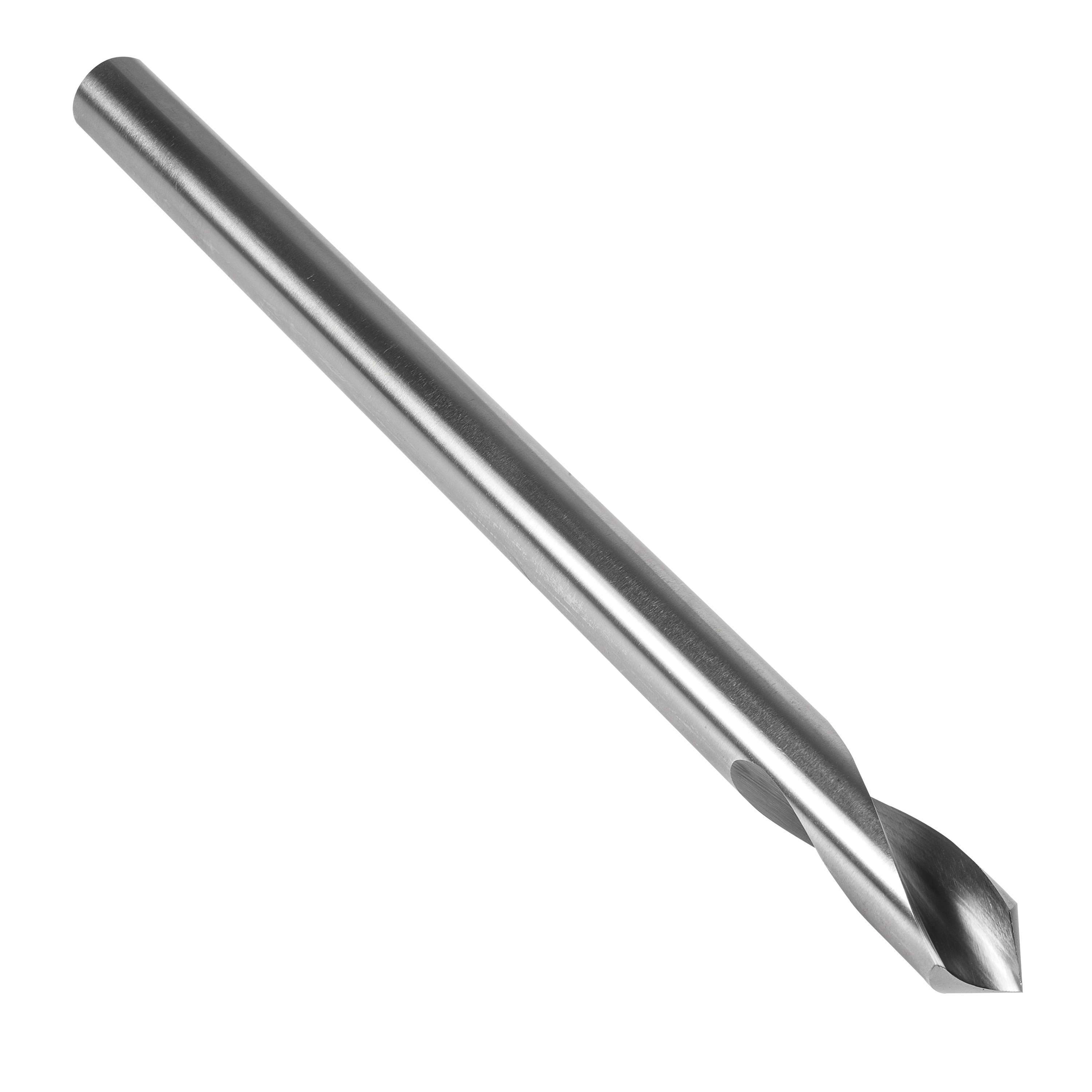

Precision Twist Drill 6000019 SPL-90 Long Length Special Purpose Spotting Drill, 1 in Dia, 10 in OAL, HSS, Bright
Invoice description:
Spot Drill Utd 087929
Factory Order
Precision Twist Drill Spotting Drill, Long Length Special Purpose, Series: SPL-90, 1 in Diameter, 10 in Overall Length, 1XD Cutting Depth, Spiral Flute, 2-1/4 in Flute Length, 1 in Shank, Straight Shank, 90 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Features
- Bright finish improves chip flow in soft or non-ferrous materials
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make It attractive in a wide range of applications
Specifications
ApplicationFor light to heavy duty general purpose machining
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Diameter1 in
FinishBright
Flute Length2-1/4 in
Flute TypeSpiral
MaterialHSS
Overall Length10 in
Point Angle90 deg
Point TypeConventional
SeriesSPL-90
Shank Size1 in
Shank TypeStraight
TypeLong Length Special Purpose
Additional Information
Country of OriginBR
