Precision Twist Drill UTD 087905

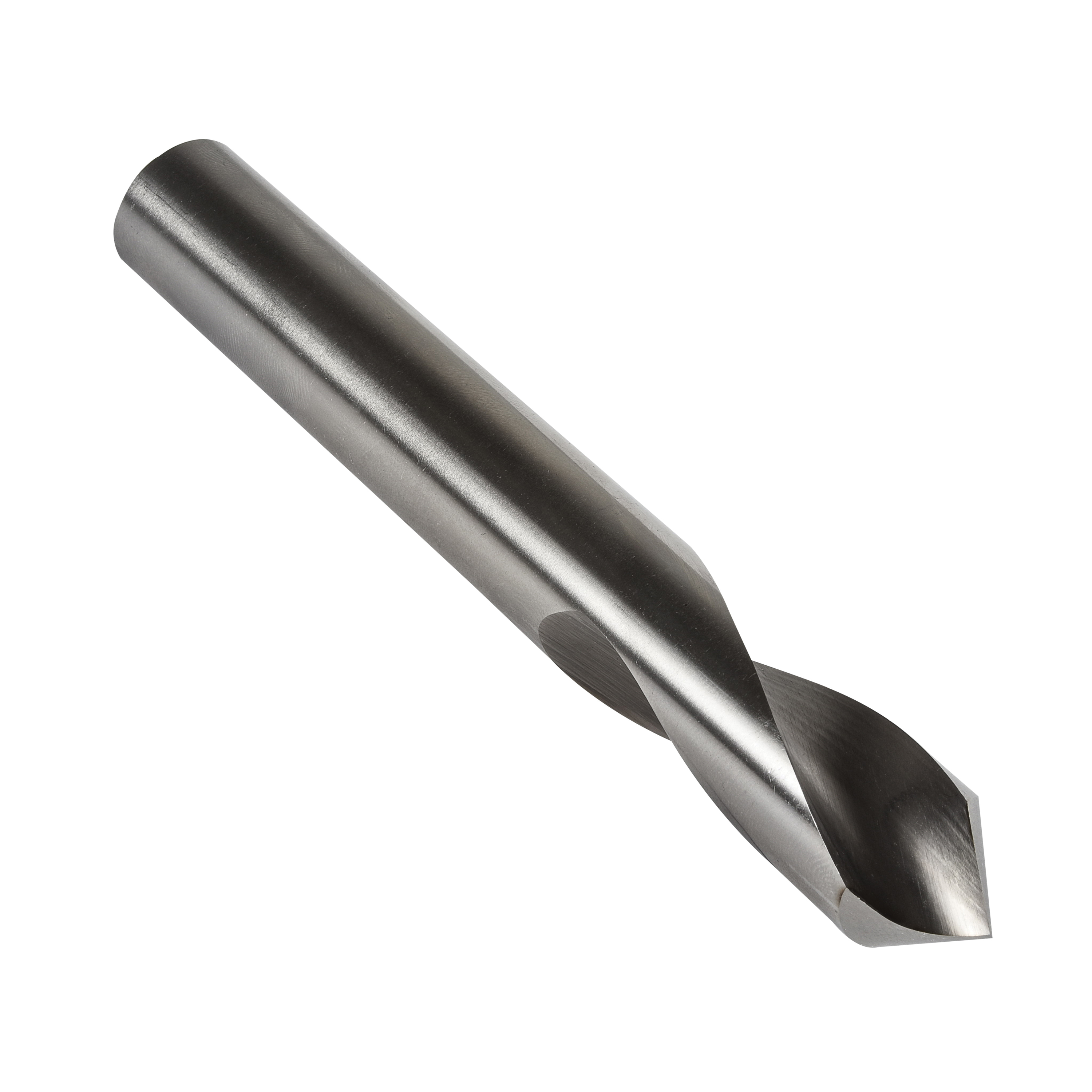

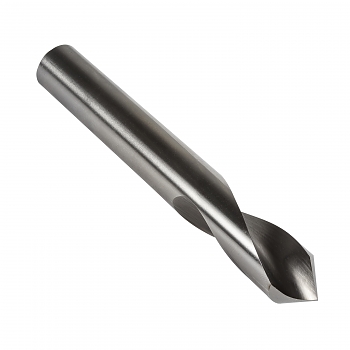

Precision Twist Drill 6000087 SPS-90 Short Length Special Purpose Spotting Drill, 1 in Dia, 6 in OAL, HSS, Bright

UPC: 086071879059
UNSPSC: 23241606
Manufacturer PN: 6000087
$142.80 EA
Factory Order
QTY:


Precision Twist Drill Spotting Drill, Short Length Special Purpose, Series: SPS-90, 1 in Dia, 6 in Overall Length, 1XD Cutting Depth, Spiral Flute, 2-1/4 in Flute Length, Straight Shank, 90 deg Point, Conventional Point, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel, Copper and Aluminum Magnesium

  • Features

  • Bright finish improves chip flow in soft or non-ferrous materials
  • A medium alloyed high speed steel that has good machinability and good performance
  • HSS exhibits hardness, toughness and wear resistance characteristics that make It attractive in a wide range of applications

Specifications

ApplicationFor light to heavy duty general purpose machining
Applicable MaterialsSteel, Copper and Aluminum Magnesium
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Diameter1 in
FinishBright
Flute Length2-1/4 in
Flute TypeSpiral
MaterialHSS
Overall Length6 in
Point Angle90 deg
Point TypeConventional
SeriesSPS-90
Shank TypeStraight
TypeShort Length Special Purpose
