Dormer UTD 0582329

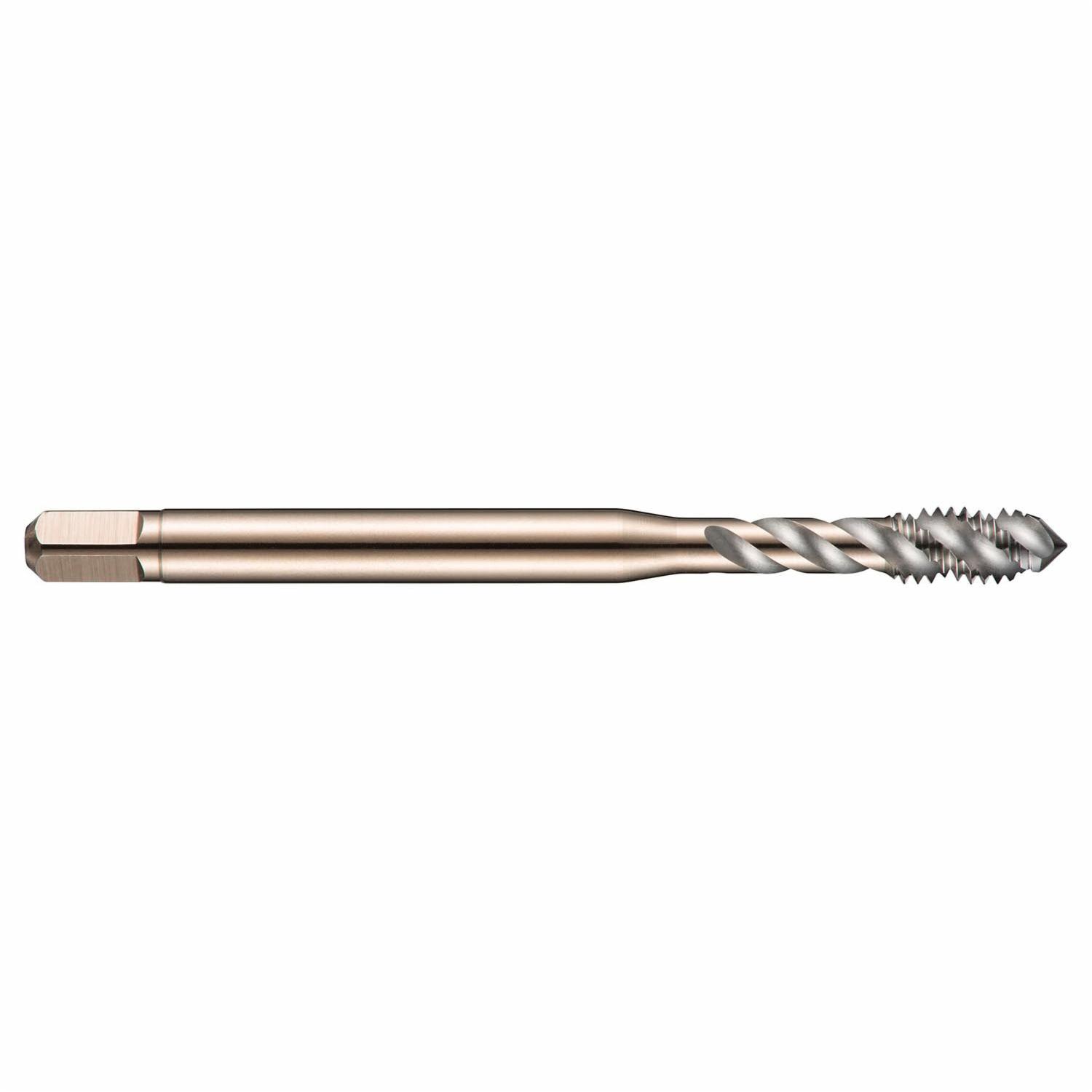

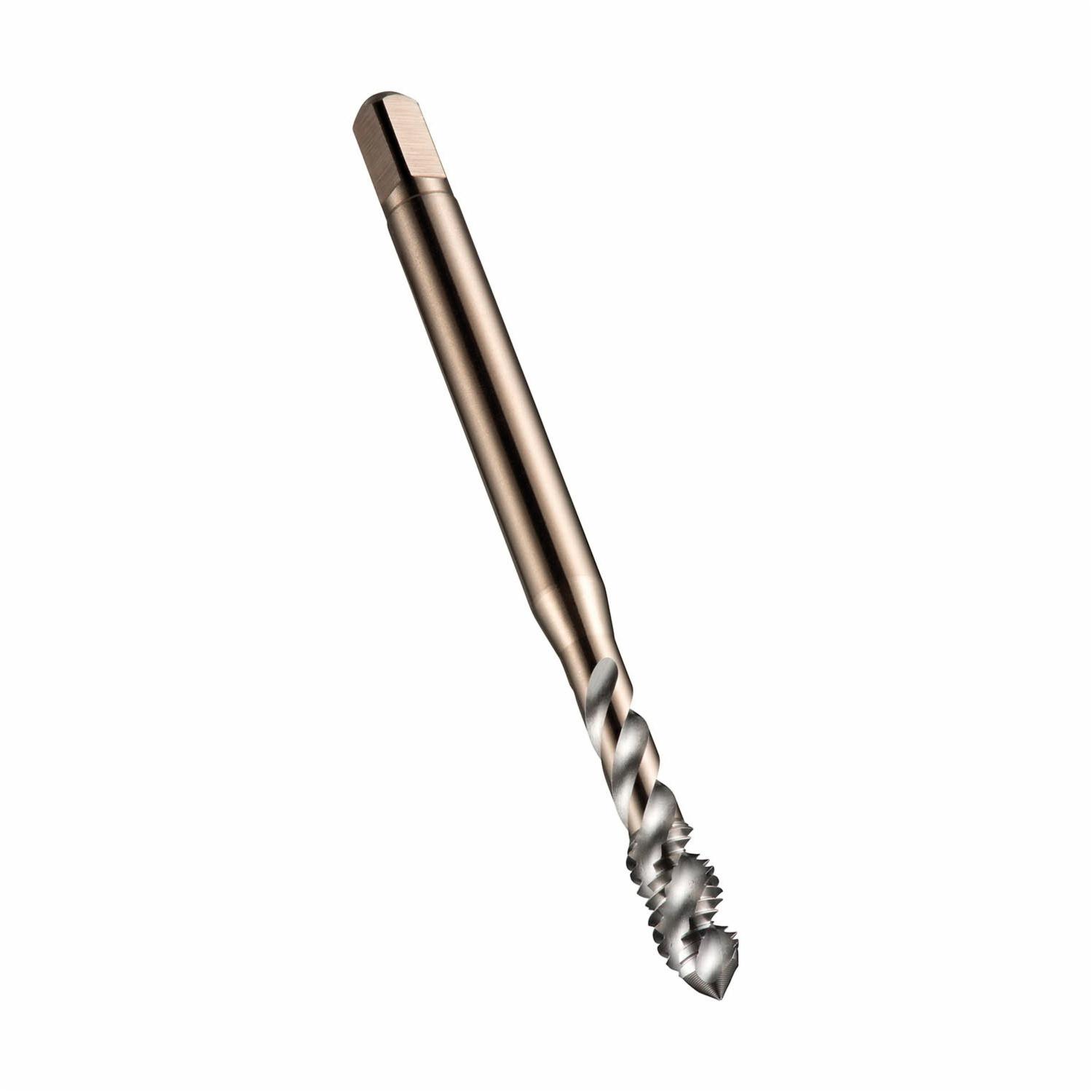

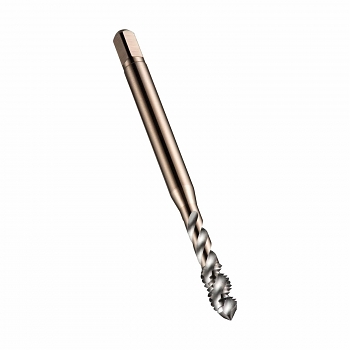

Dormer 5974666 E037 Dormer Spiral Flute Tap, Right Hand Cutting, 1/4-28 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Gold, HSS-E

Invoice description: E037 Hss-xs1 Tap Spiral Flt Unf Gold E037 Si

UPC: 732076058232
UNSPSC: 23241615
Manufacturer PN: 5974666
$31.54 EA
Factory Order
QTY:


Dormer Dormer Spiral Flute Tap, Series: 196, Measurement System: Imperial, UNF, 1/4-28, Semi-Bottoming Chamfer, 3 Flutes, HSS-E, Gold, Class of Fit: 3B/H3, Right Hand Cutting, 0.393 in Thread Length, 2-1/2 in Overall Length, 0.255 in Shank Dia, Right Hand Flute Direction, Yes Through Coolant (Yes/No)

  • Features

  • Coolant through design allows higher tapping speeds and eliminates the problems associated with inadequate coolant in horizontal or deep hole applications

Specifications

ApplicationFor multi applications
Chamfer TypeSemi-Bottoming
Class of Fit3B/H3
Cutting DirectionRight Hand
Finish/CoatingGold
Flute DirectionRight Hand
MaterialHSS-E
Measurement SystemImperial
Number of Flutes3
Overall Length2-1/2 in
SeriesE037
Shank Diameter0.255 in
Thread Length0.393 in
Thread Size1/4-28
Thread StandardUNF
Through Coolant (Yes/No)Yes

Additional Information

Standards/ApprovalANSI Specified|CSA Approved
Country of OriginBR
