Dormer UTD 0581735

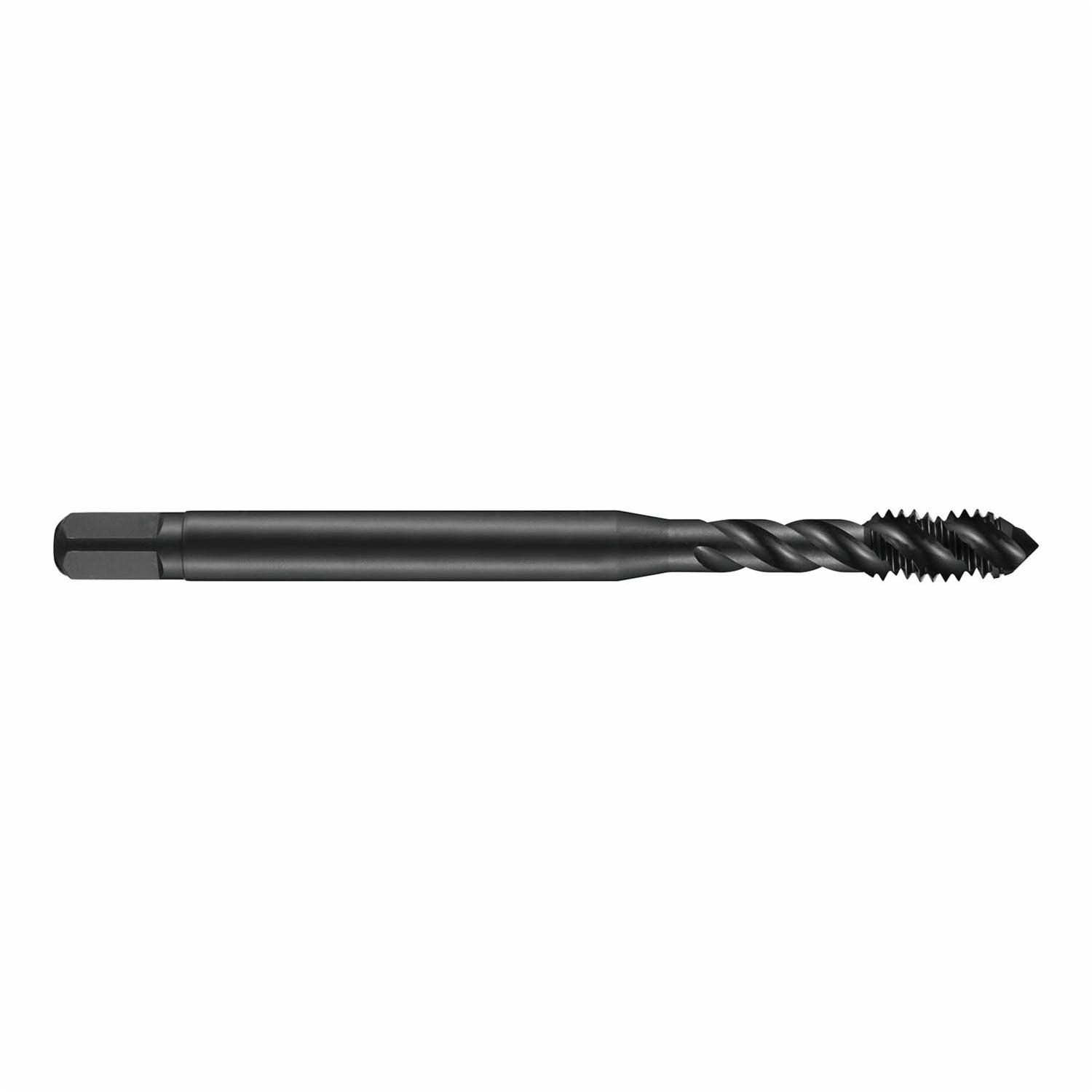

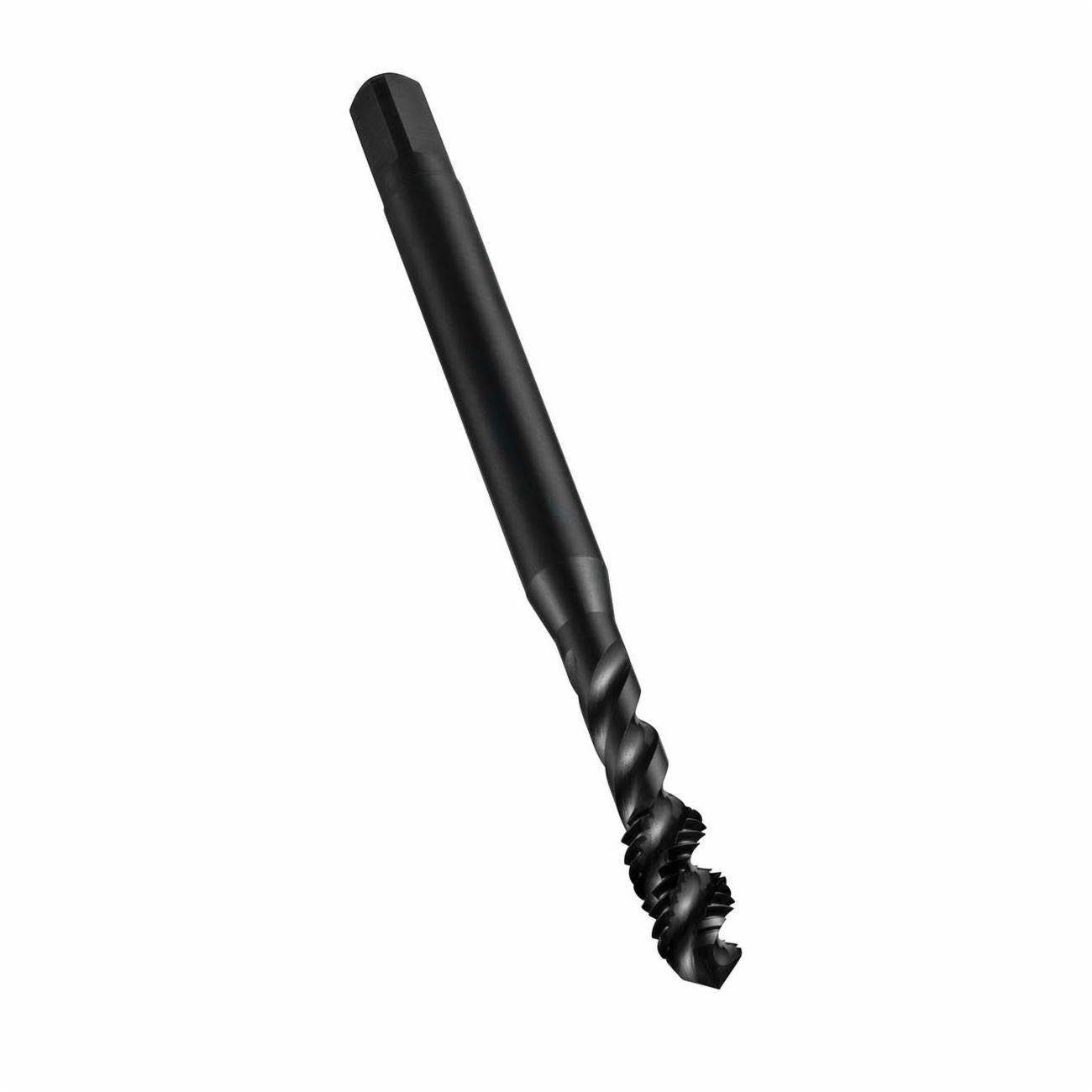

Dormer 5974032 E028 Dormer Spiral Flute Tap, Right Hand Cutting, 3/8-16 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Steam Tempered, HSS-XS1

UPC: 732076058173
UNSPSC: 23241615
Manufacturer PN: 5974032
$44.96 EA
Factory Order
QTY:


Dormer Dormer Spiral Flute Tap, Series: 239, Measurement System: Imperial, UNC, 3/8-16, Semi-Bottoming Chamfer, 3 Flutes, HSS-XS1, Steam Tempered, Class of Fit: 3B/H5, Right Hand Cutting, 0.531 in Thread Length, 2-15/16 in Overall Length, 0.381 in Shank Dia, Right Hand Flute Direction, Abrasive or Harder Ferrous Materials Material Application

  • Features

  • Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
  • C2-3 chamfer form

Specifications

ApplicationFor multi applications
Chamfer TypeSemi-Bottoming
Class of Fit3B/H5
Cutting DirectionRight Hand
Finish/CoatingSteam Tempered
Flute DirectionRight Hand
MaterialHSS-XS1
Material ApplicationAbrasive or Harder Ferrous Materials
Measurement SystemImperial
Number of Flutes3
Overall Length2-15/16 in
SeriesE028
Shank Diameter0.381 in
Thread Length0.531 in
Thread Size3/8-16
Thread StandardUNC
